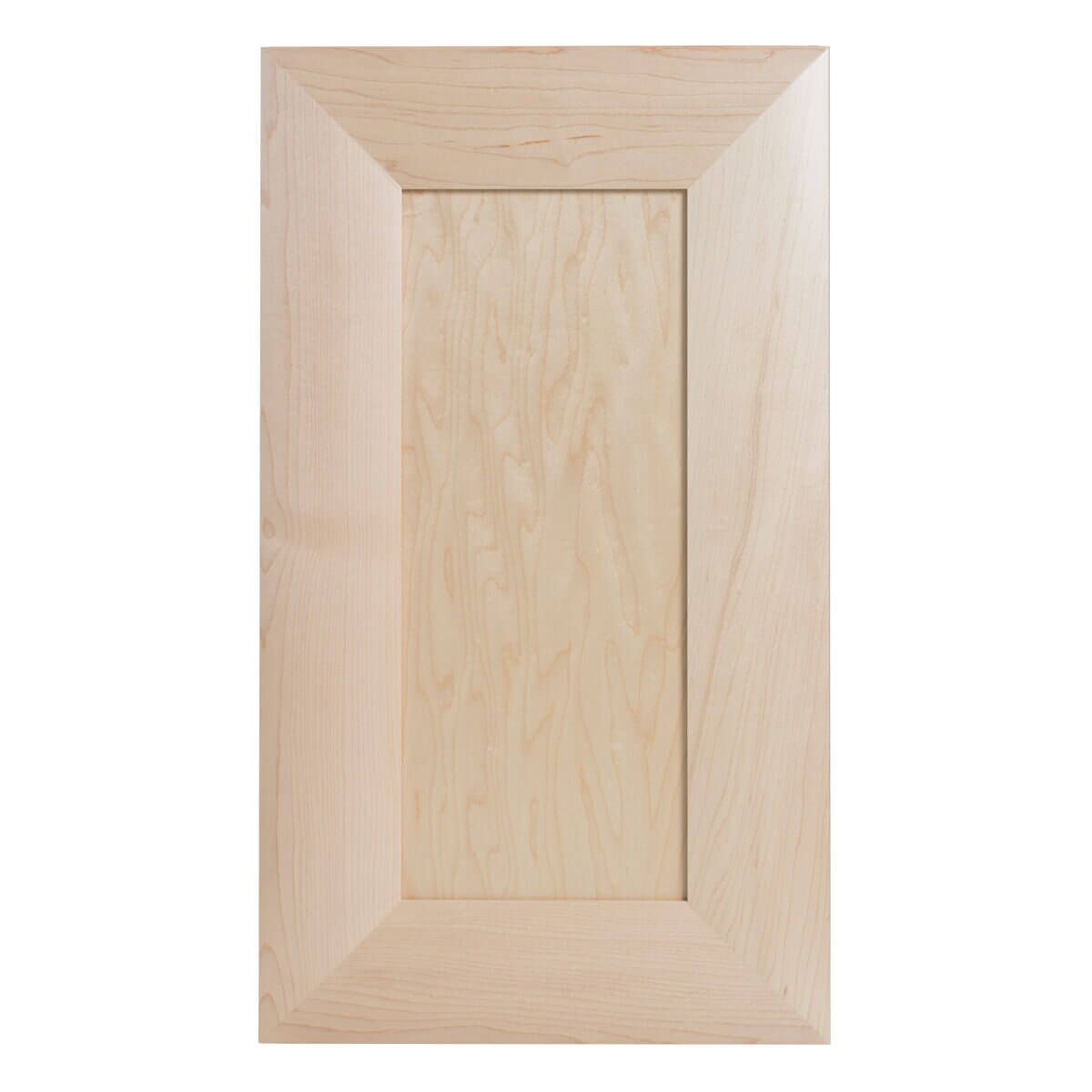

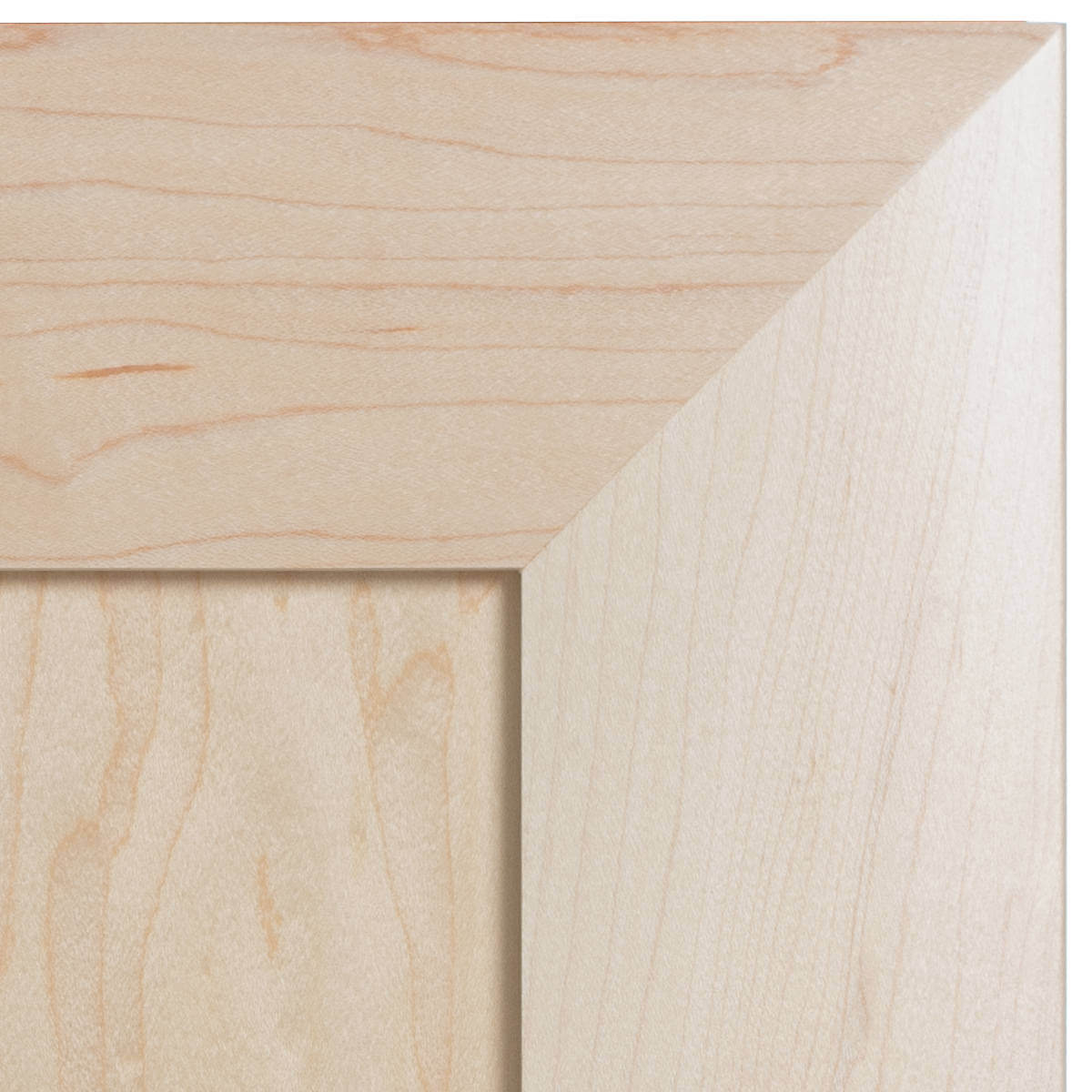

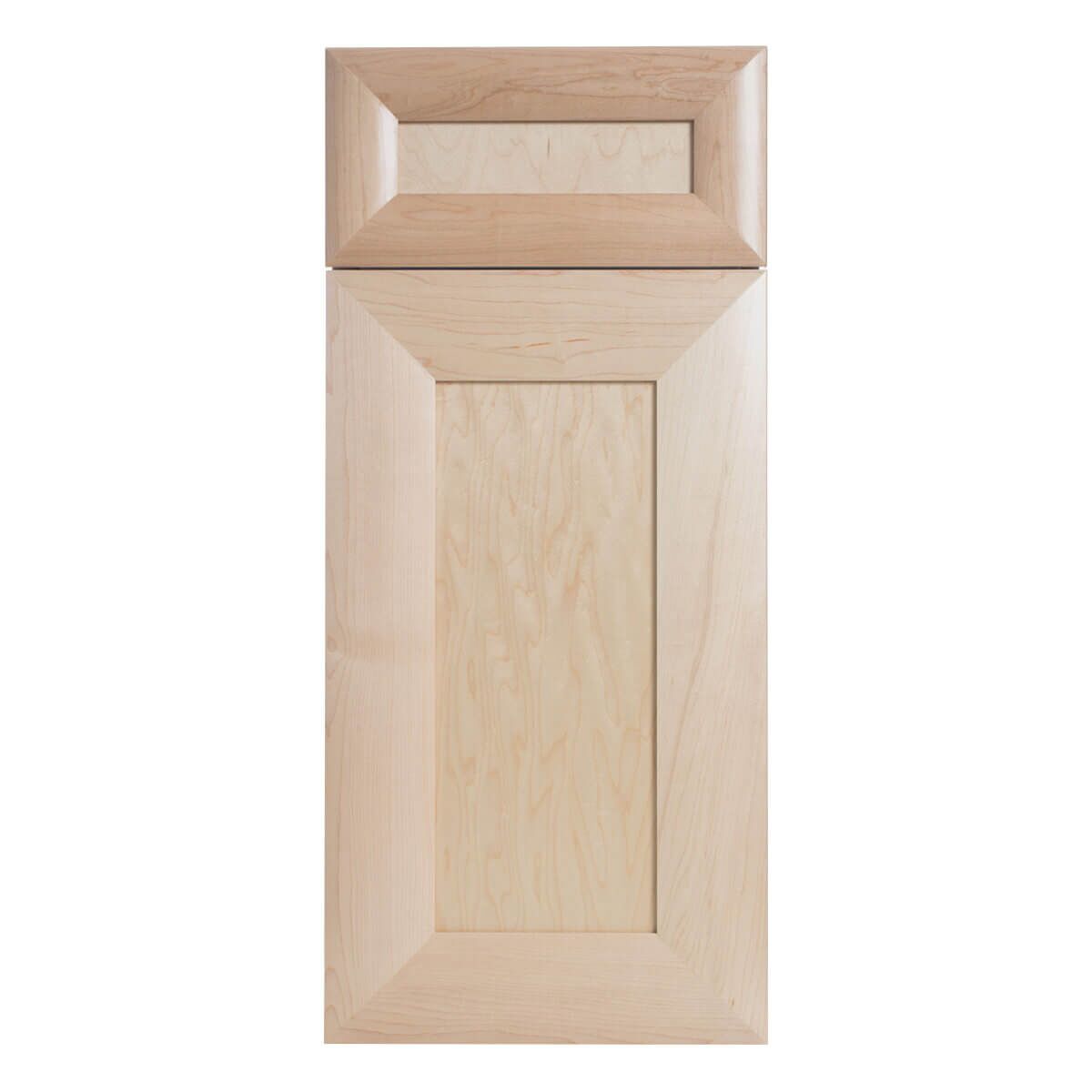

The Piedmont cabinet door style features a flat panel in 1/4″ veneer ply or a solid panel. The frame is solid hardwood with miter joinery.
Available in the following Wood Species: Paint Grade Maple, Select White Maple, Select Red Oak, Quarter Sawn Red Oak, Rift Sawn White Oak, Select Cherry, Select Walnut, Clear Alder, Rustic Alder, Select Hickory, Select White Birch, or Vertical Carbonized Bamboo.

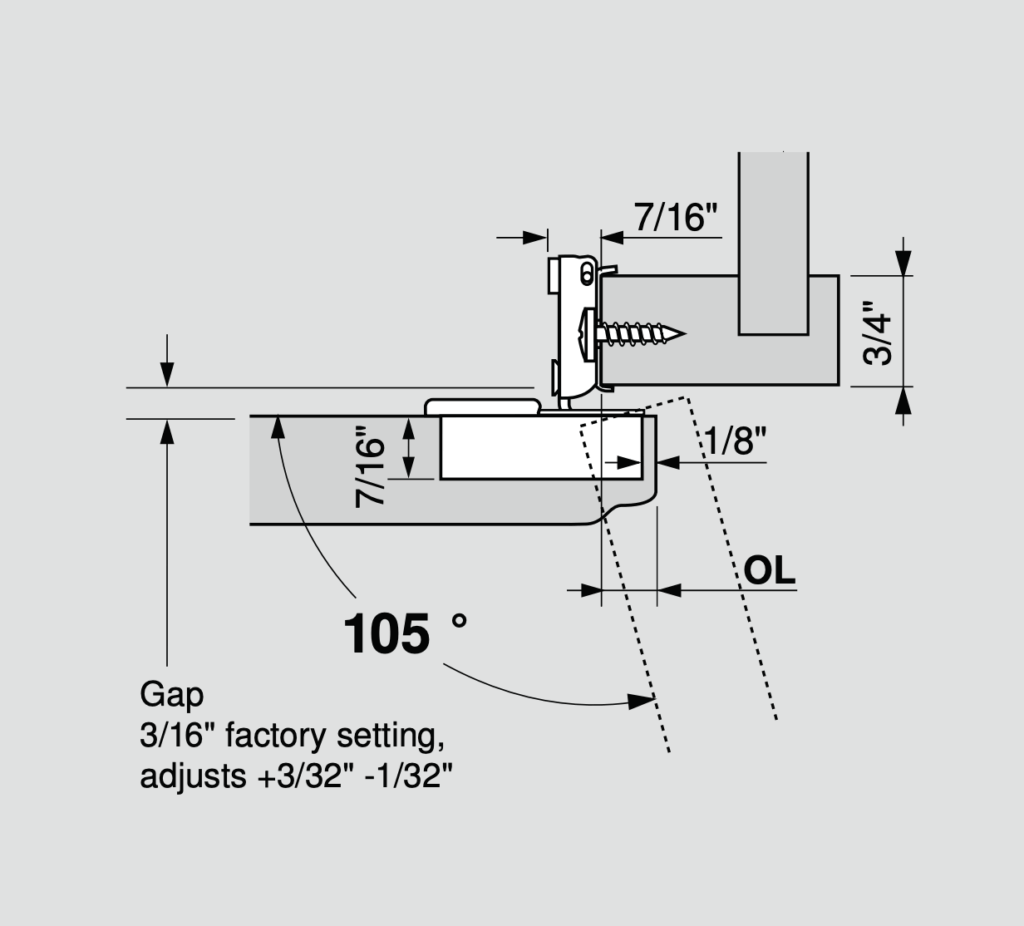

Optional hinge cup boring in 3 different formats is available.
Pre-finishing is available as a Satin Conversion Varnish topcoat or a White Conversion Varnish primer, ready for paint.
These cabinet doors are built with a 3″ wide frame.
The Cabinet Door Store manufactures miter doors with multiple panels utilizing center stiles and rails. Any multiple panel miter door is not a standard production item, therefore requires additional lead time and a quoted price.
The Cabinet Door Store warrants that it’s wood cabinet doors have a size tolerance of +/- 1mm. Warping is always a factor with wood cabinet doors. The Cabinet Door Store warrants that any door or drawer front under 24”x48” will have a warpage allowance of 1/8”. Doors or drawer fronts between the sizes of 24”x48” and 24”x72” will have a warpage allowance of ¼”. Any doors or drawer fronts wider than 24” or higher than 72” will not be warranted for warpage.
Note: This applies to doors and drawer fronts with one vertical grain panel.
Quality Standards for Every Miter Door and Drawer Front
Every door is:
- orbital and/or hand sanded in every panel profile.
- thickness sanded on the back side with 100, 150 and 180 grit sandpaper.
- orbital and/or hand sanded on the face side.
- individually inspected for quality and ensure proper corners and smoothness.
Minimum Size Calculations for Miter Doors and Drawer Fronts
For Solid Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + (Panel Profile Reveal x 2) + 1/2”
For Plywood Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + 1”
