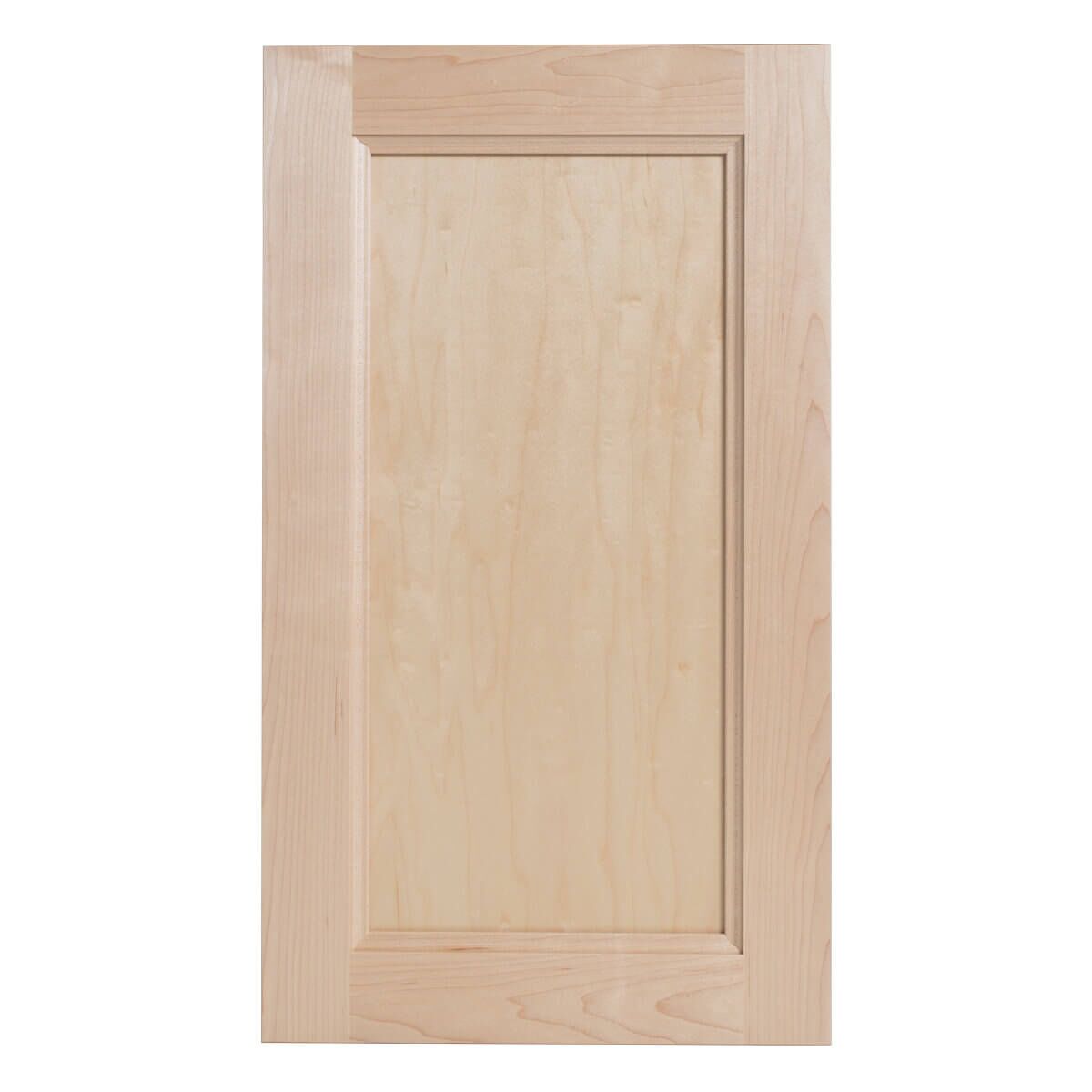

Concord Cabinet Door
$33.93
$33.93
Customize Your Concord Cabinet Door
Enter exact product dimensions in decimal form.
Product Description
The Concord cabinet door style features a flat panel available in 1/4″ veneer ply or solid wood. The frame is solid hardwood with tenon joinery.
Available in the following Wood Species: Paint Grade Maple, Select White Maple, Select Red Oak, Quarter Sawn Red Oak, Rift Sawn White Oak, Select Cherry, Select Walnut, Clear Alder, Rustic Alder, Select Hickory, Select White Birch, or Vertical Carbonized Bamboo.
Optional hinge cup boring in 3 different formats is available.
Pre-finishing is available as a Satin Conversion Varnish topcoat or a White Conversion Varnish primer, ready for paint.
These cabinet doors are available with 5 different frame widths: 2.25”, 2.5”, 2.625”, 2.75”, and 3”.
Tenon Door and Drawer Front Construction
The Cabinet Door Store manufactures its wood tenon style cabinet doors without the use of any metal pins. All solid panels are installed with rubber spacers to allow for expansion or contraction in different environmental situations. All plywood panels are glued in on all four sides as plywood is structurally stable and this prevents any possible vibration problems in the future with the plywood panel.
Tenon Door and Drawer Front Thickness
All tenon doors are 0.8” (20mm) thick.
Grain Direction
Cabinet doors have a vertical grain by default. Drawer Fronts have a horizontal grain by default (as of 1/18/2022; NOTE: product photos show vertical grain; this is available by request). Grain direction is not applicable for doors and drawer fronts with Paint Grade Maple w/ HDF Center Panels.
Center Rails & Stiles on Tenon Doors and Drawer Fronts
Defaults:
- Cabinet doors over 48” in height will have a horizontal center rail inserted
- Cabinet doors over 24” in width will have a vertical center stile inserted.
- Cabinet doors over 48” in width will have 2 vertical center stiles inserted.
- Drawer Fronts under 48″ in width WILL NOT have a vertical center stile.
- Drawer Fronts OVER 48″ in width WILL have a vertical center stile.
All center stiles and rails will be centered to create even-sized panels. Tenon Doors and Fronts over 24″ W or 48″ H without recommended midrail/stile are possible to order but ARE NOT covered by our 1 year warranty.
***Use Custom Notes to Request Changes to Defaults***
Tolerance
The Cabinet Door Store warrants that it’s wood cabinet doors have a size tolerance of +/- 1mm.
Warping is always a factor with wood cabinet doors. The Cabinet Door Store warrants that any door or drawer front under 24”x48” will have an allowance of 1/8” for warpage. Doors or drawer fronts between the sizes of 24”x48” and 24”x72” will have an allowance of ¼” for warpage. Any doors or drawer fronts wider than 24” or higher than 72” will not be warranted for warpage.
Note: This applies to doors and drawer fronts with one vertical grain panel.
Inset Doors and Drawer Fronts
When ordering tenon cabinet doors for an inset application, we recommend ordering your doors slightly oversized with the “I” outside edge profile. This way you can size the front specifically for your opening. Because of the properties inherent in wood and the achievable tolerances, we do not guarantee fronts to fit an inset application properly.
Quality Standards For Every Tenon Door
Every Door is:
- assembled in an automated clamp to ensure squareness.
- squared again and edged to your desired profile on a CNC automated double ender.
- thickness sanded with 100, 150 and 180 grit sandpaper front and back.
- machine orbital sanded front and back.
- hand orbital sanded front for select and premium grades.
- profile sanded on the raised panel and outside edges.
- run through a denibber sander.
- individually inspected for quality and ensure all cross grain scratches have been removed.
Minimum Size Calculation
For Solid Panel Tenon Doors & Drawer Fronts – (Stile / Rail Width x 2) + (Panel Profile Reveal x 2) + 1/2”.
For Plywood Panel Tenon Doors & Drawer Fronts – (Stile / Rail Width x 2) + 1”
See Standard Paint Colors here: Paint Colors
See Standard Stain Colors here: Stain Colors
To add the Custom Color Match Fee to your cart: Custom Color Match Fee
143 reviews for Concord Cabinet Door
Customer Images
Customers Also Bought:
You may also like…
Hinge Boring Pattern Options
For Screw-On Hinges (L1P)
Hinge cup with 2 pilot holes for screws. Recommended for most DIY and one-off situations.
For Press-In Hinges (L3)
Required for Inserta Hinges. Standard press-in hinges require a knock-in tool or Minipress.
Bore Distance (A)
Most Concealed Door Hinges for Face Frame cabinets require a 3mm (1/8″) Bore Distance (from edge of door to start of 35mm bore).
6mm (.25″) is an option for Framed or Frameless Cabinets or other situations.
Handing is Determined By Looking at Front
TIP: Order Same-Size Symmetrical Doors Together and Flip for Left or Right
Bore Offset (B and C)
Our standard Bore Offset (from bottom or top edge of door to center of 35mm bore) is 3-1/2″.
See below for exceptions.
