Cambridge Cabinet Door
$68.64
$68.64
Customize Your Cambridge Cabinet Door
Enter exact product dimensions in decimal form.
Product Description

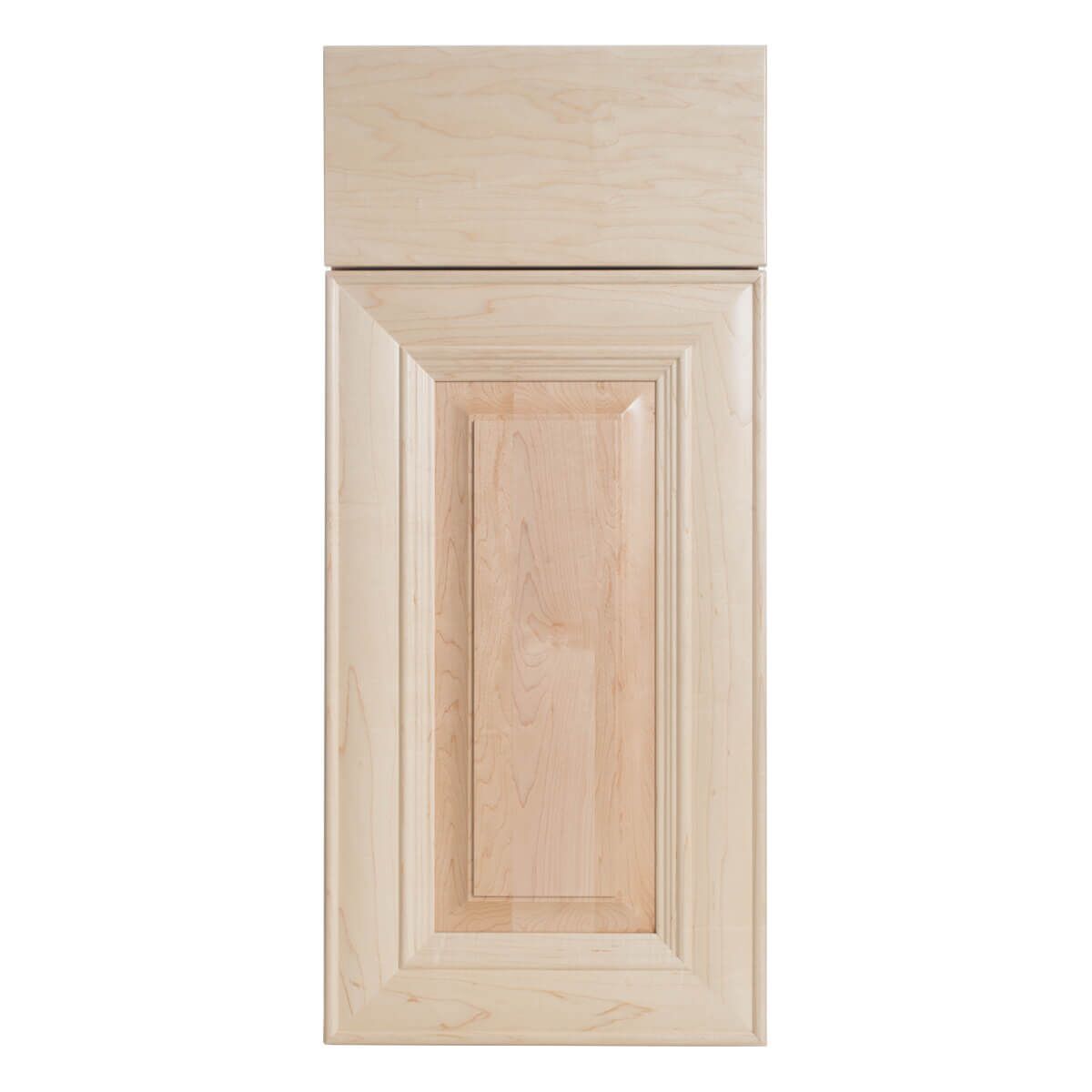

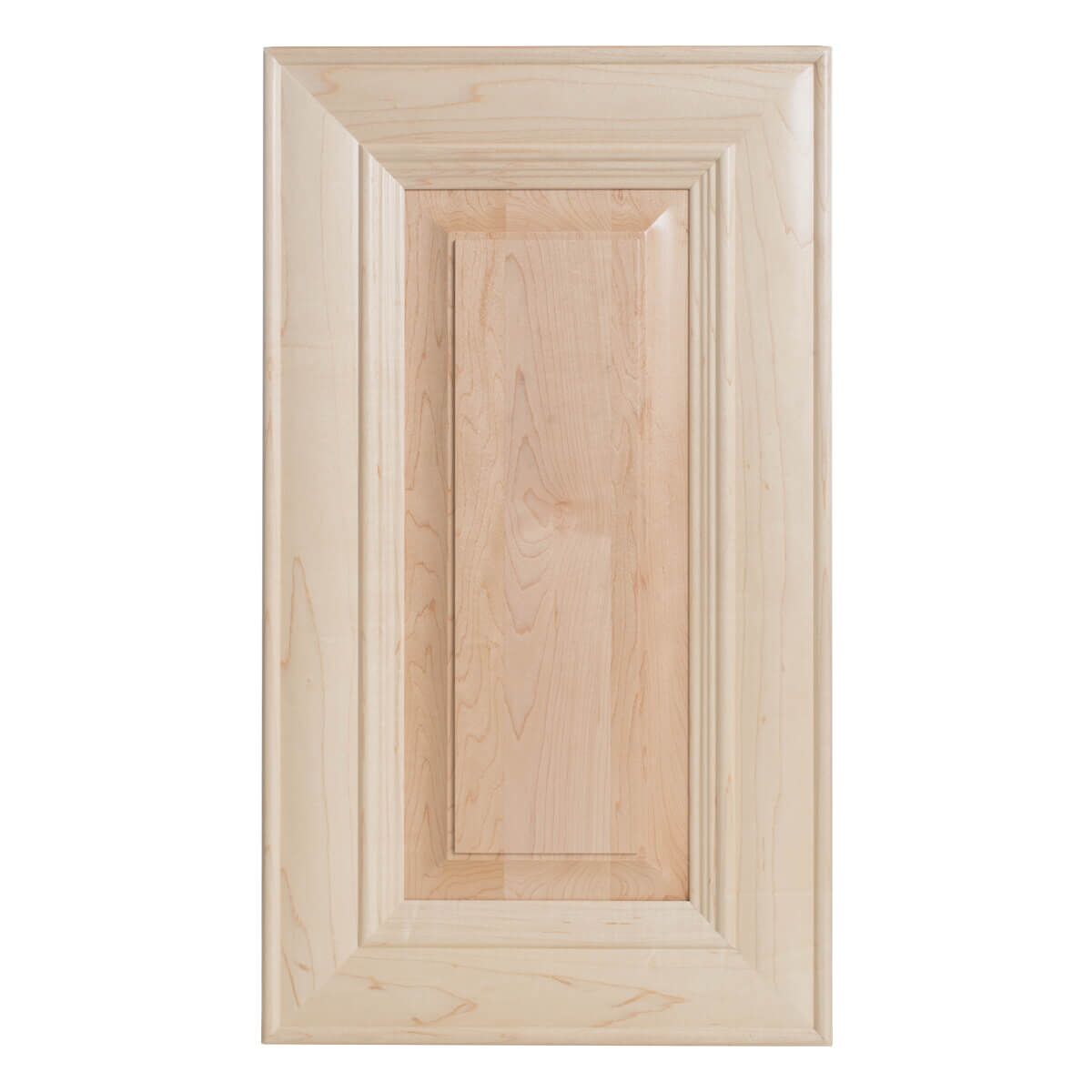

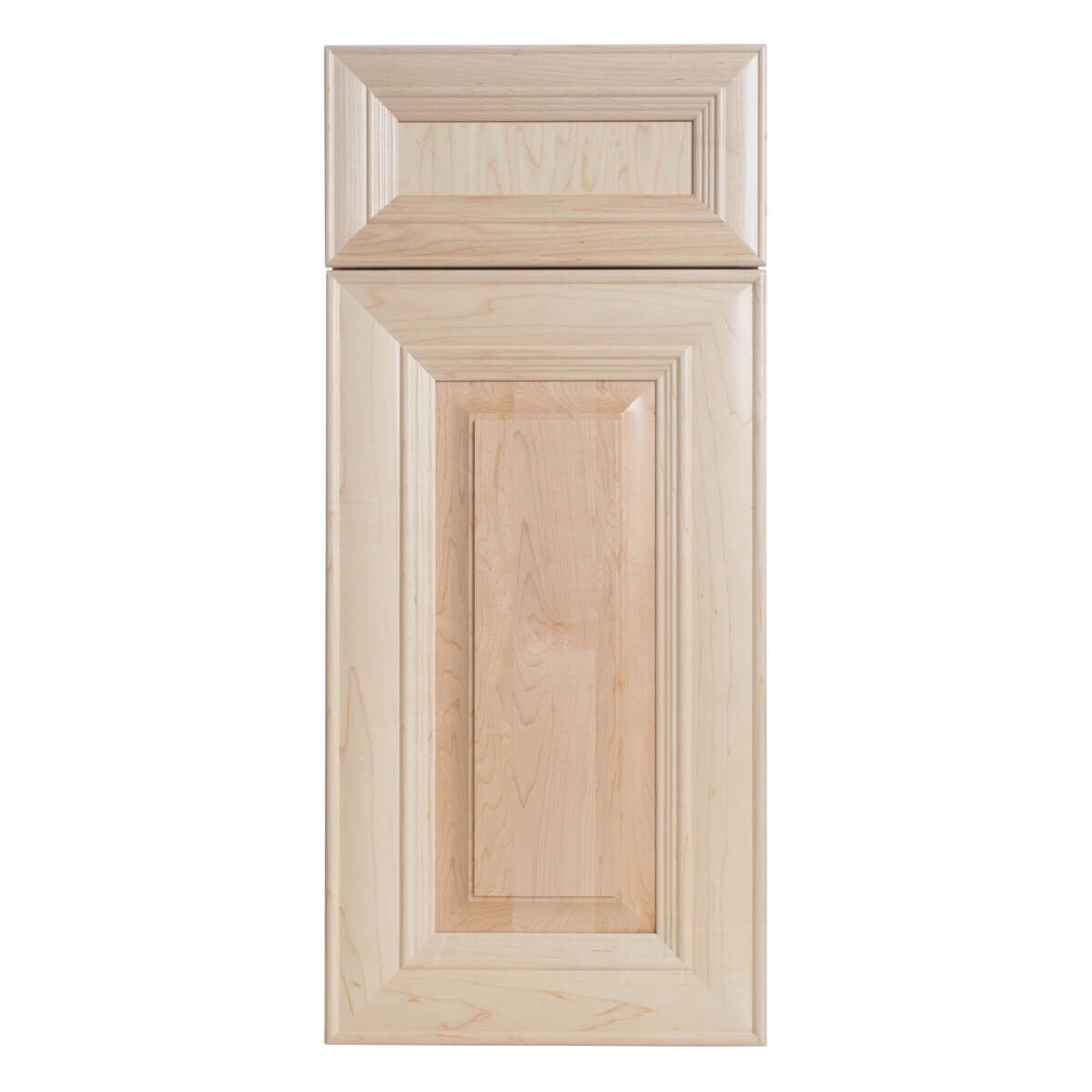

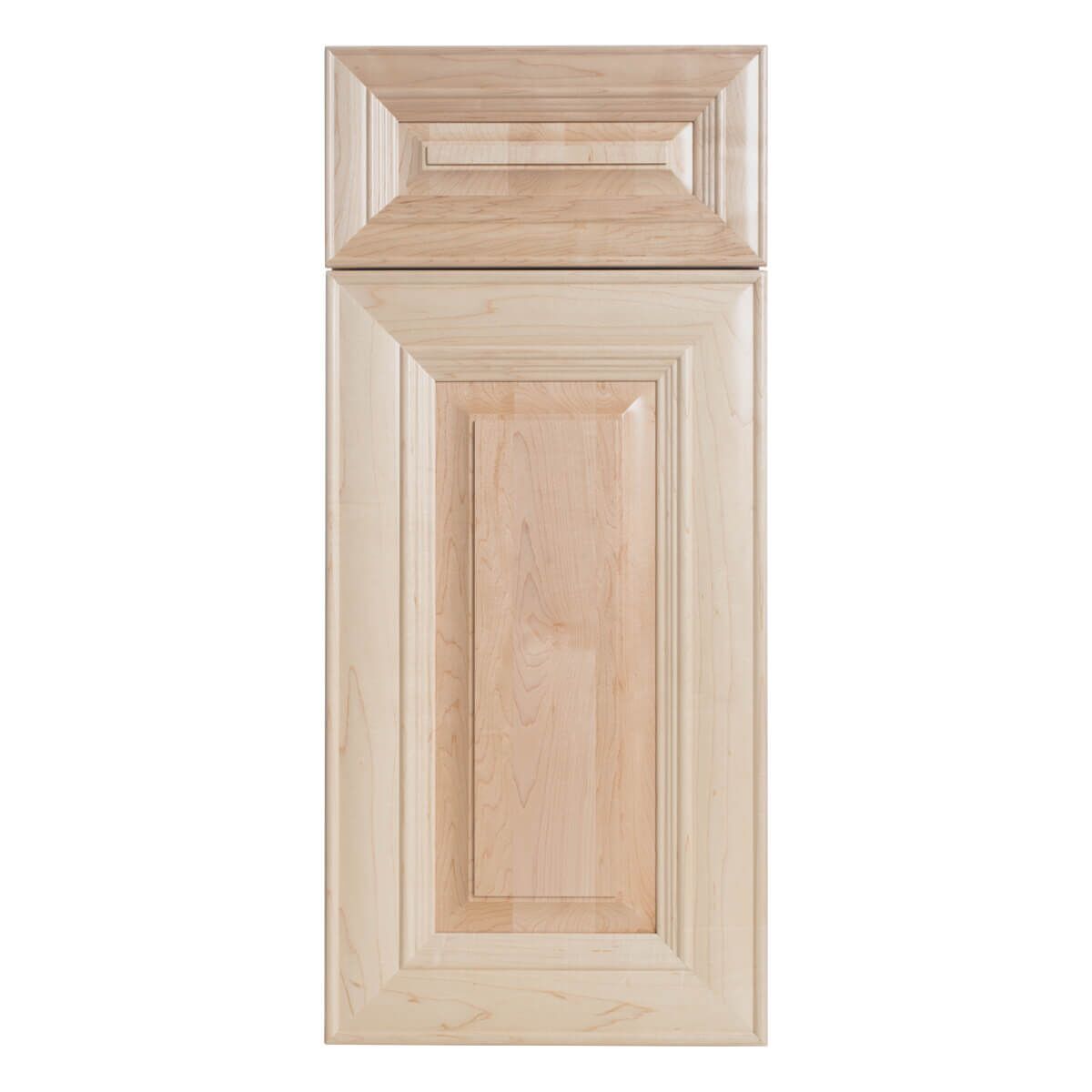

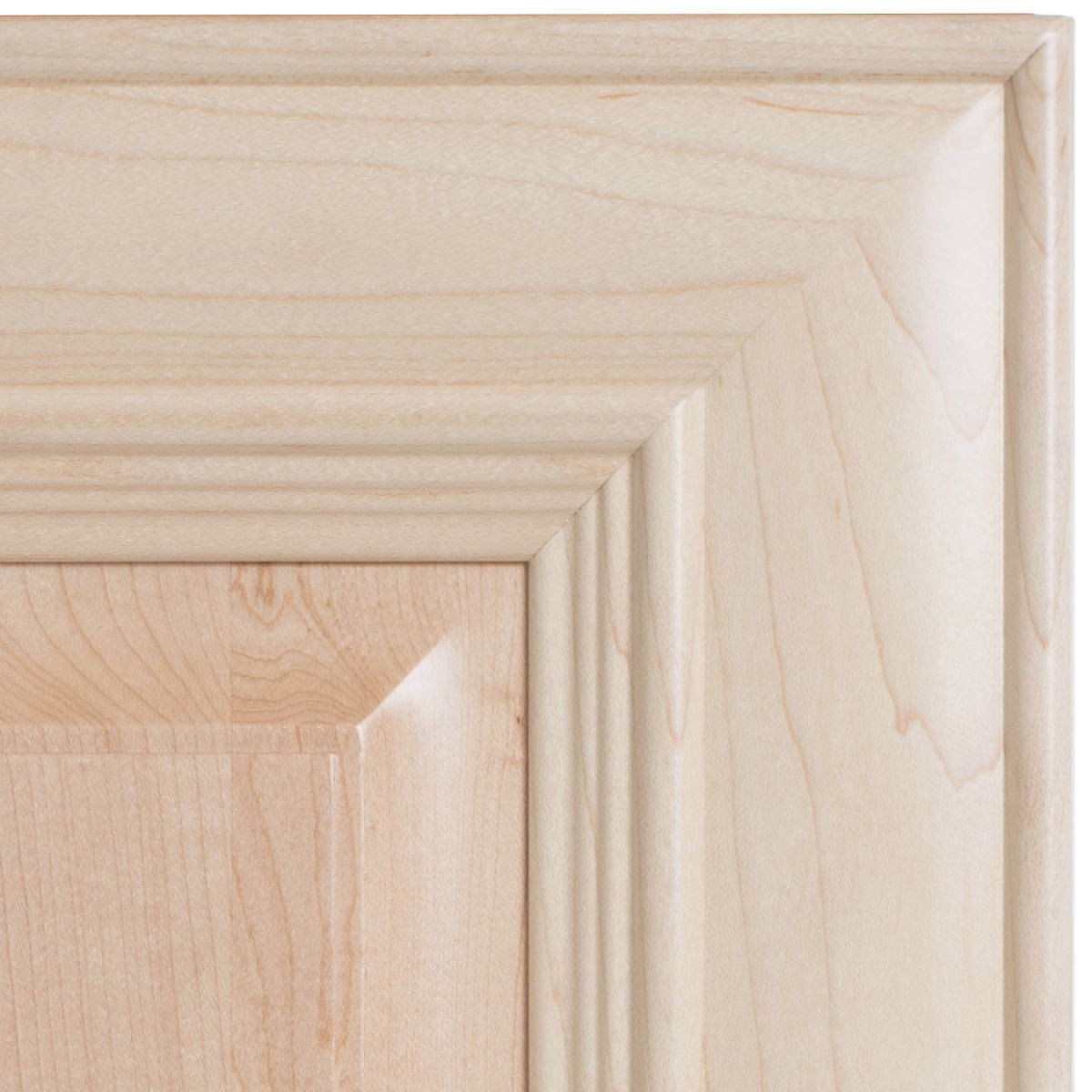

The Cambridge cabinet door style features a solid raised panel. The frame is solid hardwood with miter joinery.
Available in the following Wood Species: Paint Grade Maple, Select White Maple, Select Red Oak, Quarter Sawn Red Oak, Rift Sawn White Oak, Select Cherry, Select Walnut, Clear Alder, Rustic Alder, Select Hickory, Select White Birch, or Vertical Carbonized Bamboo.
Optional hinge cup boring in 3 different formats is available.
Pre-finishing is available as a Satin Conversion Varnish topcoat or a White Conversion Varnish primer, ready for paint.
These cabinet doors are built with a 3″ wide frame.
Multiple Panels
The Cabinet Door Store manufactures miter doors with multiple panels utilizing center stiles and rails. Any multiple panel miter door is not a standard production item, therefore requires additional lead time and a quoted price.
Tolerance
The Cabinet Door Store warrants that it’s wood cabinet doors have a size tolerance of +/- 1mm. Warping is always a factor with wood cabinet doors. The Cabinet Door Store warrants that any door or drawer front under 24”x48” will have a warpage allowance of 1/8”. Doors or drawer fronts between the sizes of 24”x48” and 24”x72” will have a warpage allowance of ¼”. Any doors or drawer fronts wider than 24” or higher than 72” will not be warranted for warpage. Note: This applies to doors and drawer fronts with one vertical grain panel.
IMPORTANT: When mitered fronts are in a climate that is too humid, the outside of those joints will open like that (see below image). If the humidity is lowered, we may see those joints move back to the more typical position. (on the flip side, if it is too dry, the inside may open on the miter).
If fronts will be painted, ORDER PAINT GRADE MAPLE W/ HDF CENTER PANEL. We construct these with a screw and plug to help minimize this gapping that can happen.
Quality Standards for Every Miter Door and Drawer Front
Every door is:
- orbital and/or hand sanded in every panel profile.
- thickness sanded on the back side with 100, 150 and 180 grit sandpaper.
- orbital and/or hand sanded on the face side.
- individually inspected for quality and ensure proper corners and smoothness.
Minimum Size Calculations for Miter Doors and Drawer Fronts
For Solid Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + (Panel Profile Reveal x 2) + 1/2”
For Plywood Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + 1”
See Standard Paint Colors here: Paint Colors
See Standard Stain Colors here: Stain Colors
To add the Custom Color Match Fee to your cart: Custom Color Match Fee
29 reviews for Cambridge Cabinet Door
Customer Images
Customers Also Bought:
You may also like…
Hinge Boring Pattern Options
For Screw-On Hinges (L1P)
Hinge cup with 2 pilot holes for screws. Recommended for most DIY and one-off situations.
For Press-In Hinges (L3)
Required for Inserta Hinges. Standard press-in hinges require a knock-in tool or Minipress.
Bore Distance (A)
Most Concealed Door Hinges for Face Frame cabinets require a 3mm (1/8″) Bore Distance (from edge of door to start of 35mm bore).
6mm (.25″) is an option for Framed or Frameless Cabinets or other situations.
Handing is Determined By Looking at Front
TIP: Order Same-Size Symmetrical Doors Together and Flip for Left or Right
Bore Offset (B and C)
Our standard Bore Offset (from bottom or top edge of door to center of 35mm bore) is 3-1/2″.
See below for exceptions.
