$24.99
Customize Your Prefinished Plywood Drawer Box
Enter exact outside product dimensions in decimal form.

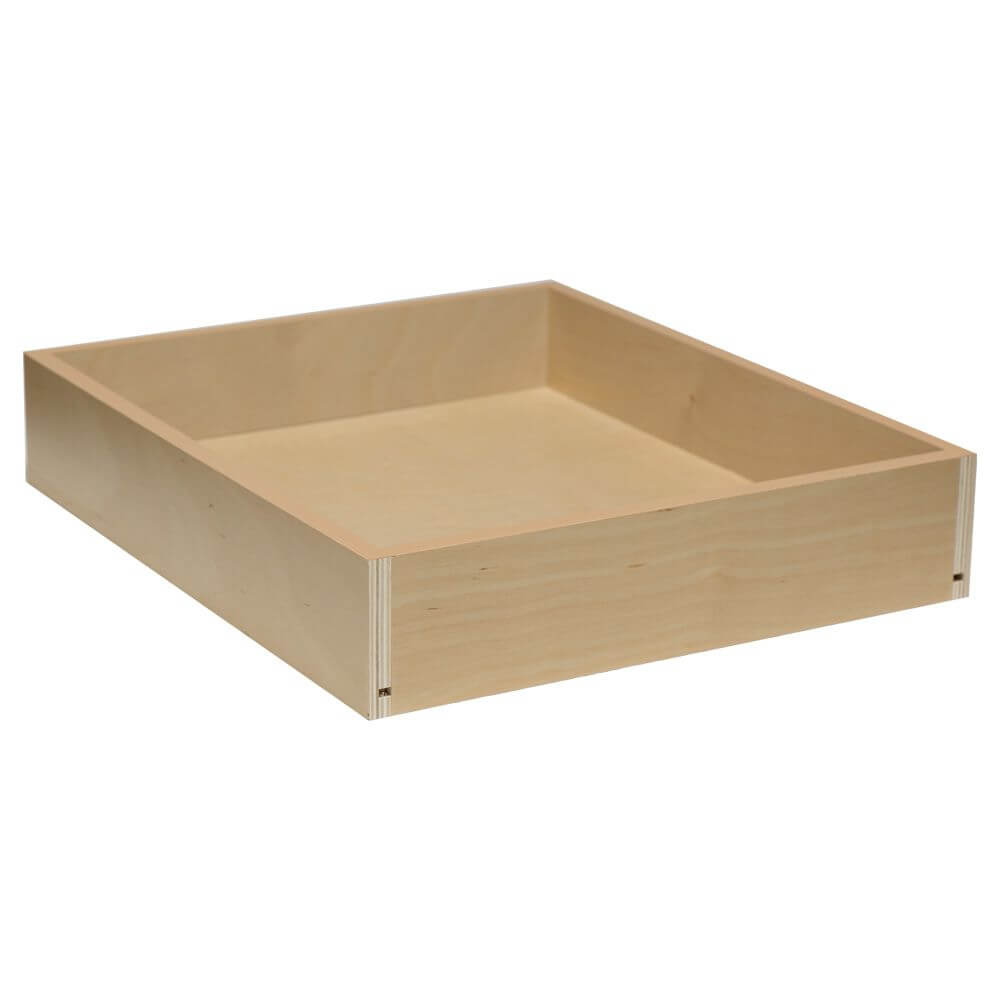

Made from 9 ply Baltic Birch, this drawer box is the perfect combination of economy and quality. By limiting some options, this drawer box becomes very affordable. They come unassembled with pre-glued dowels inserted for quick and easy assembly. Drawer sides are 5/8” 9 ply Baltic Birch with edge banding on the top edge, and a ¼” thick plywood bottom that is recessed up ½”. These boxes are designed for side mount slides only and require a drawer front. These drawer boxes come with a durable clear lacquer topcoat.

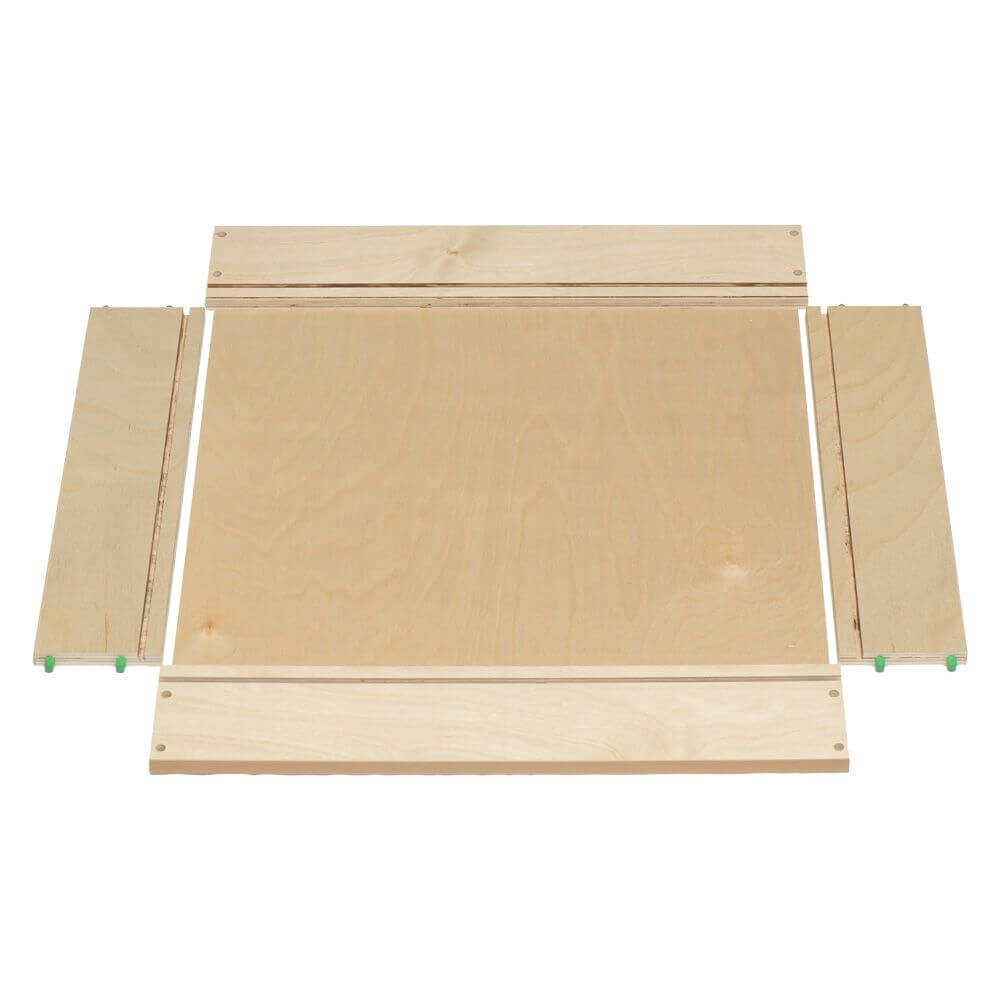

- Fast Assembly with Pre-Inserted Dowels; Ships unassembled
- 5/8″ 9-Ply Baltic Birch sides, 1/4″ Plywood Bottom
- Tops of sides have a PVC Edgebanding
- Finished in a Durable Clear Satin Conversion Varnish
- Requires a drawer front to cover face

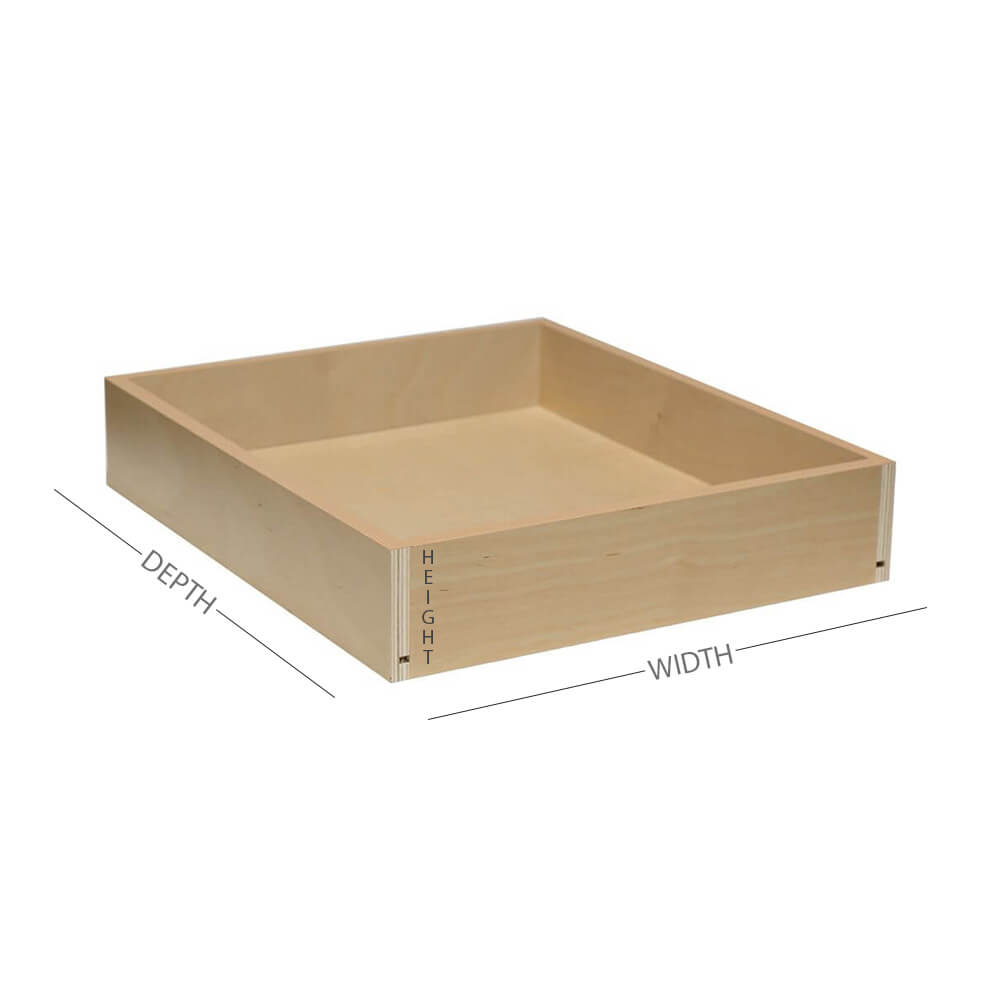

Minimum and Maximum Dimensions
- Width: 5″ – 24″
- Depth: 5″ – 24″
- Height: 3″ – 12″
Determine Which Slides You’ll Use
You must first decide what type of drawer slides you want to use. If you are reusing your existing slides, simply measure your existing drawer box and enter those dimensions into the Customizer.
If you need new slides, you’ll need to choose which mounting style you want. There are two main styles of slides that we recommend: Side Mount and Under Mount. These terms refer to how the slide mounts to the drawer box. Both mount to the cabinet in similar ways.
Measure the exact width and height of your opening. Also, measure from the face of the cabinet to the back inside wall of the cabinet.
WIDTH: For drawer boxes with 5/8″ sides. subtract 3/8″ from the opening width. If using a drawer box with 1/2″ thick sides, subtract 5/8″.
HEIGHT: Subtract at least 7/8″ from the opening height.
DEPTH: MUST match the slide length. Available slide lengths are 9, 12, 15, 18, and 21″ in standard duty and 18, 21, 24, 27, and 30″ in heavy-duty. Kitchen cabinets will usually use a 21″ slide so the drawer box must be exactly 21″. Bathroom cabinets usually need 18″ slides with 18″ deep drawer boxes.
For KV 8400 and 8450FM Side Mount Slides
Measure the exact width and height of your opening. Also, measure from the face of the cabinet to the back inside wall of the cabinet.
WIDTH: Subtract 1-1/16″ from the opening width. This is regardless of the drawer box side thickness.
HEIGHT: Subtract at least 1/2″ from the opening height.
DEPTH: The outside depth dimension of the new drawer should usually match the slide length. But this is not as critical as with under-mount slides. Kitchen cabinets usually need 22″ slides and bathrooms usually need 18″ slides.
558 reviews for Prefinished Plywood Drawer Box
Customer Images

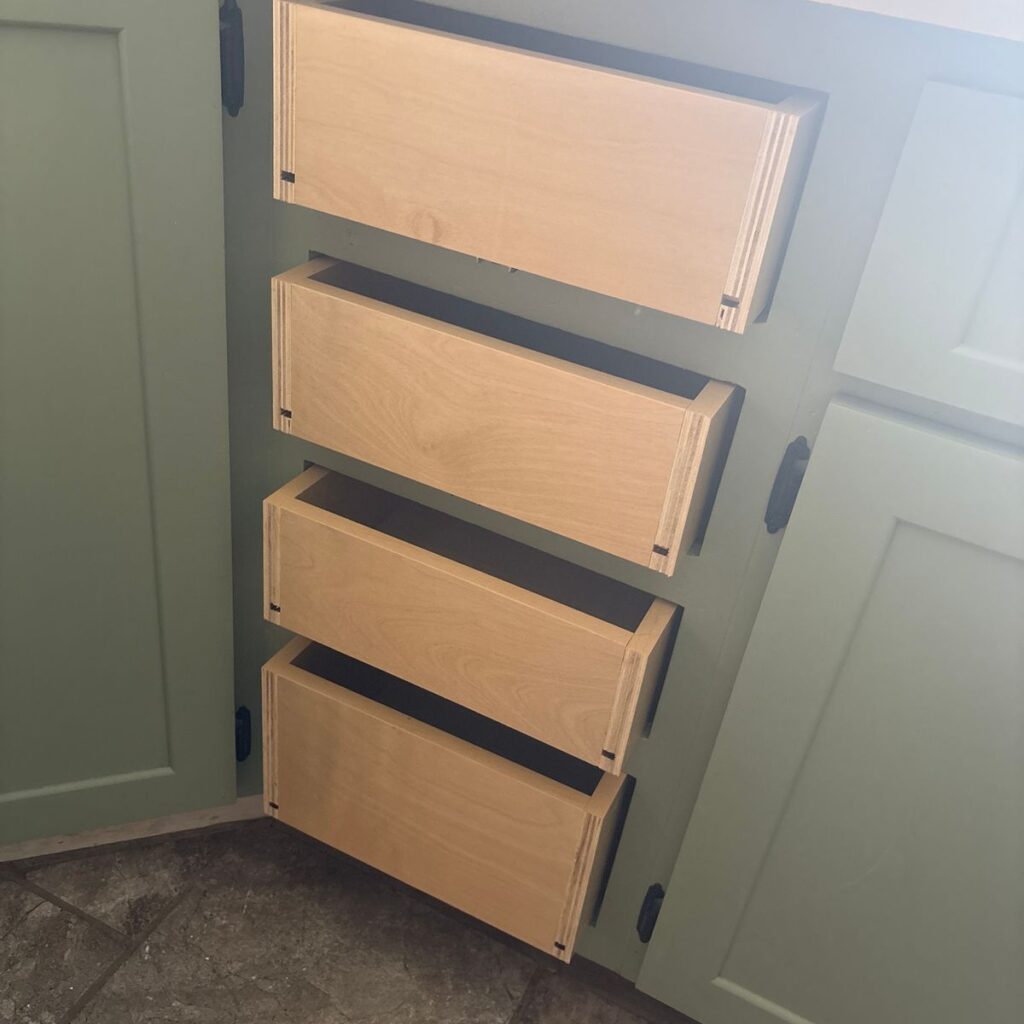

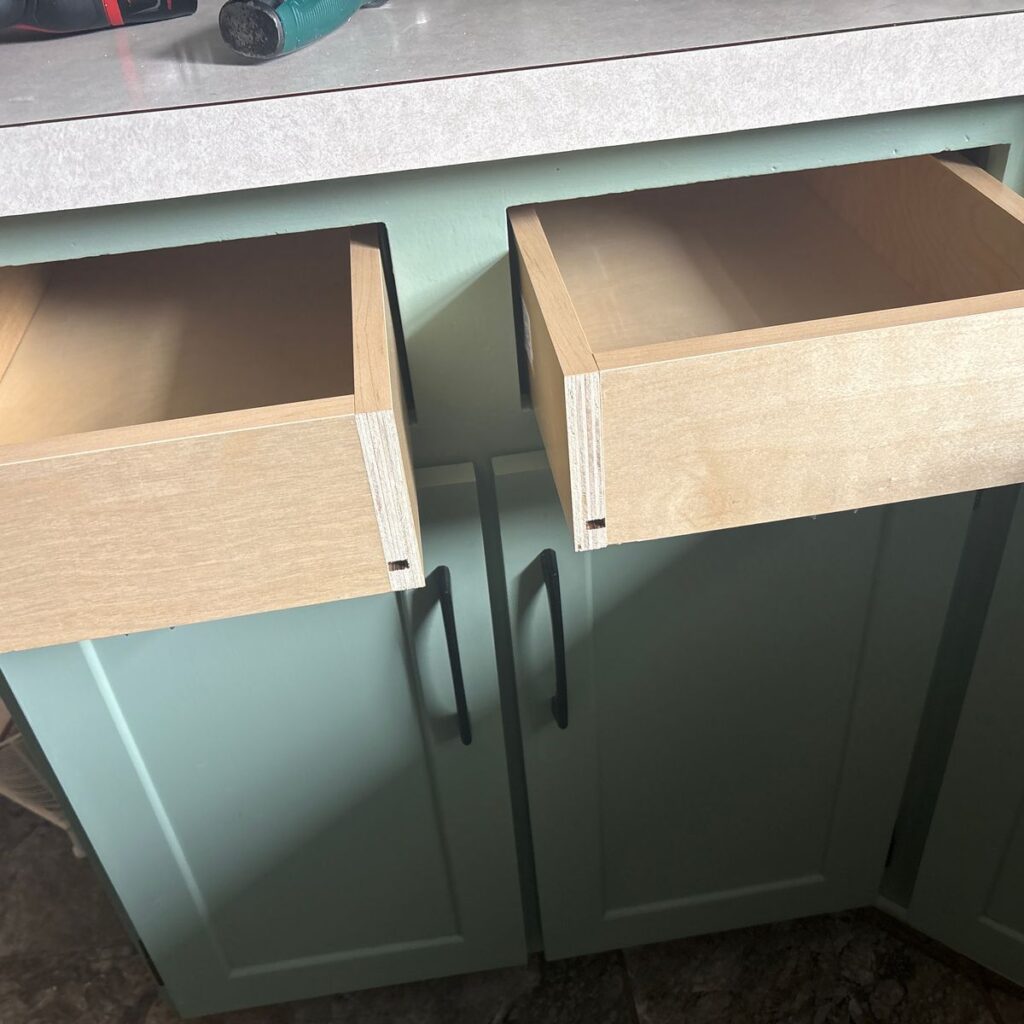

We purchased two drawer boxes to replace damaged drawers (one from water damage and the other just from usage). These boxes are much better quality than the rest of our drawers! We added our drawer fronts and guide rails from the old drawers and they are perfect. We are very happy with our purchase. Thank you!
Perfect!
