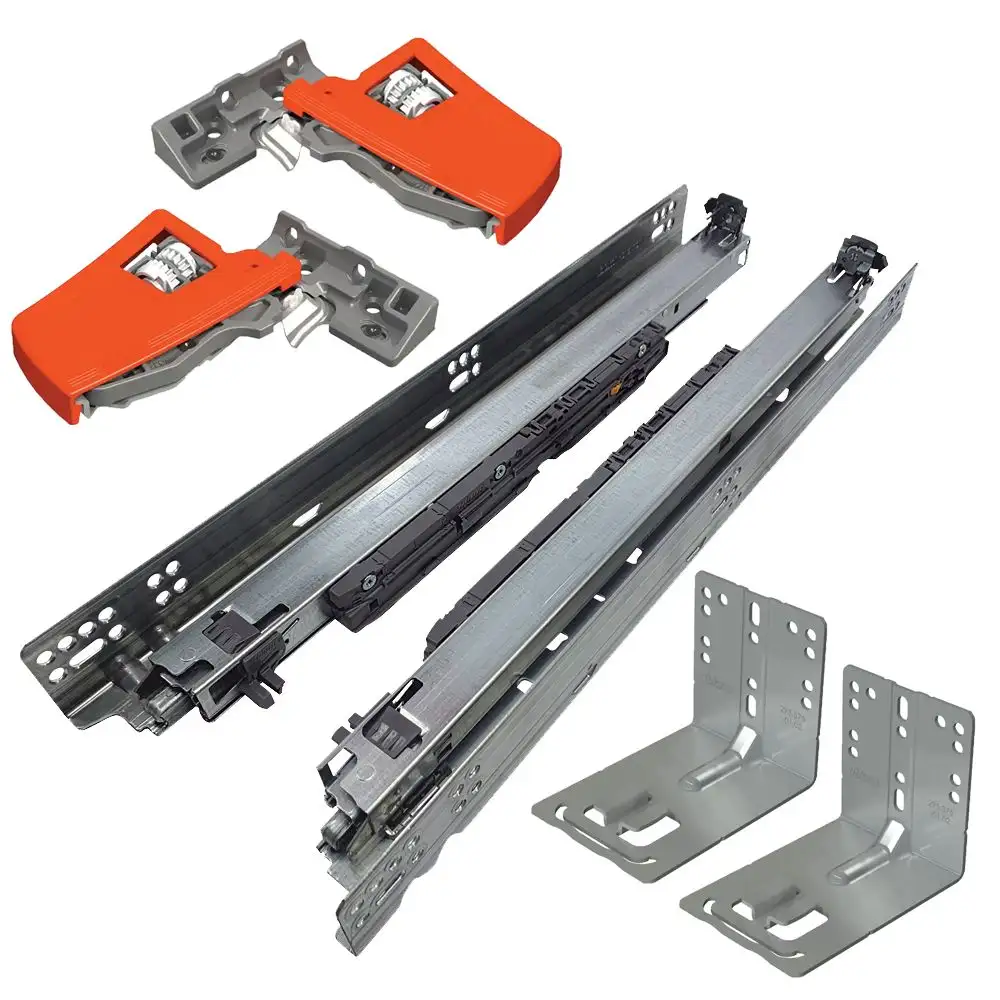

blum MOVENTO Undermount Drawer Slides
$46.89
$46.89
MOVENTO Installation Instructions
One Runner for All Applications MOVENTO runners are designed for the American 3″ increment cabinet depth system. Installation is possible in frameless or blocked-out face frame cabinets. Combine MOVENTO with TIP-ON BLUMOTION or SERVO-DRIVE to open drawers with a single touch.
One Runner for All Applications MOVENTO runners are designed for the American 3″ increment cabinet depth system. Installation is possible in frameless or blocked-out face frame cabinets. Combine MOVENTO with TIP-ON BLUMOTION or SERVO-DRIVE to open drawers with a single touch.
Load Capacities
- 125 lb static for MOVENTO 763 standard duty series
- 170 lb static for MOVENTO 769. heavy duty series
Complete Runner System
- Full extension concealed runners standard with BLUMOTION soft close
- Designed to be used with TIP-ON BLUMOTION or SERVO-DRIVE touch-to-open system
- Zinc-coated steel
- Concealed roller carriage with permanently lubricated synthetic rollers
- Available in standard and heavy duty
- Designed for drawers using 1/2″ to 5/8″ drawer material thickness
- Bottom mount holes on 763. standard duty
- Elongated holes for depth adjustment
- Tool-free tilt adjustment
- Tool-free height adjustment
- Tool-free rear side-to-side adjustment
- Lateral stabilizer for wide applications Locking Devices
Locking Devices
- Stamped steel base with synthetic, spring-loaded release levers
- Captive right device, self-aligning left device
- Self-adjusting drawer length tolerance
- Tool-free front side-to-side adjustment
- Available for narrow drawers
