Blum Corner Cabinet Hinge Kit

$8.09

(19 customer reviews)

$8.09

Kit Includes (1) Hinge, (1) Mounting Plate, & Screws

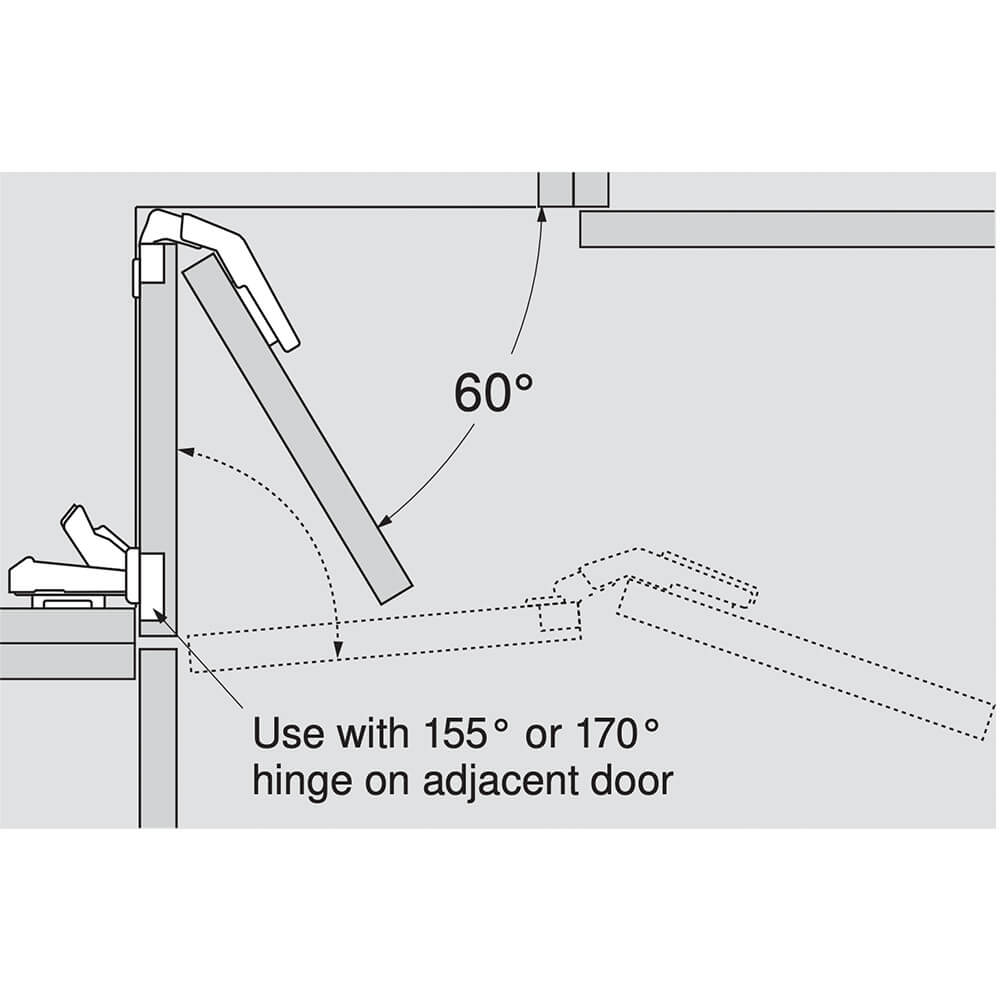

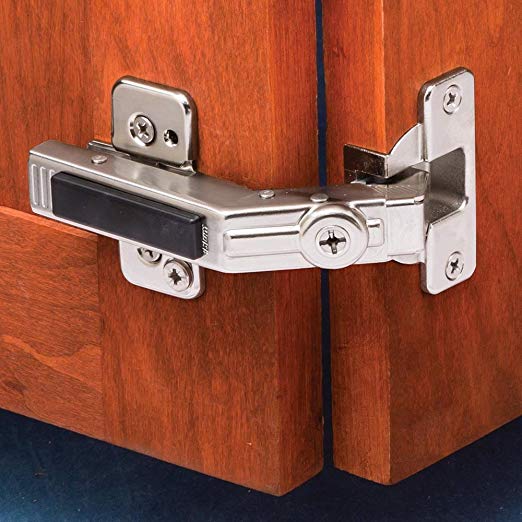

60° Clip-Top Bifold Self Closing Hinge for Corner “Lazy Susan” Cabinets

  • Spiral tech side adjustment for door gap
  • Spiral tech depth adjustment for in/out
  • Four-dimensional adjustment
  • All metal hinge, nickel-plated

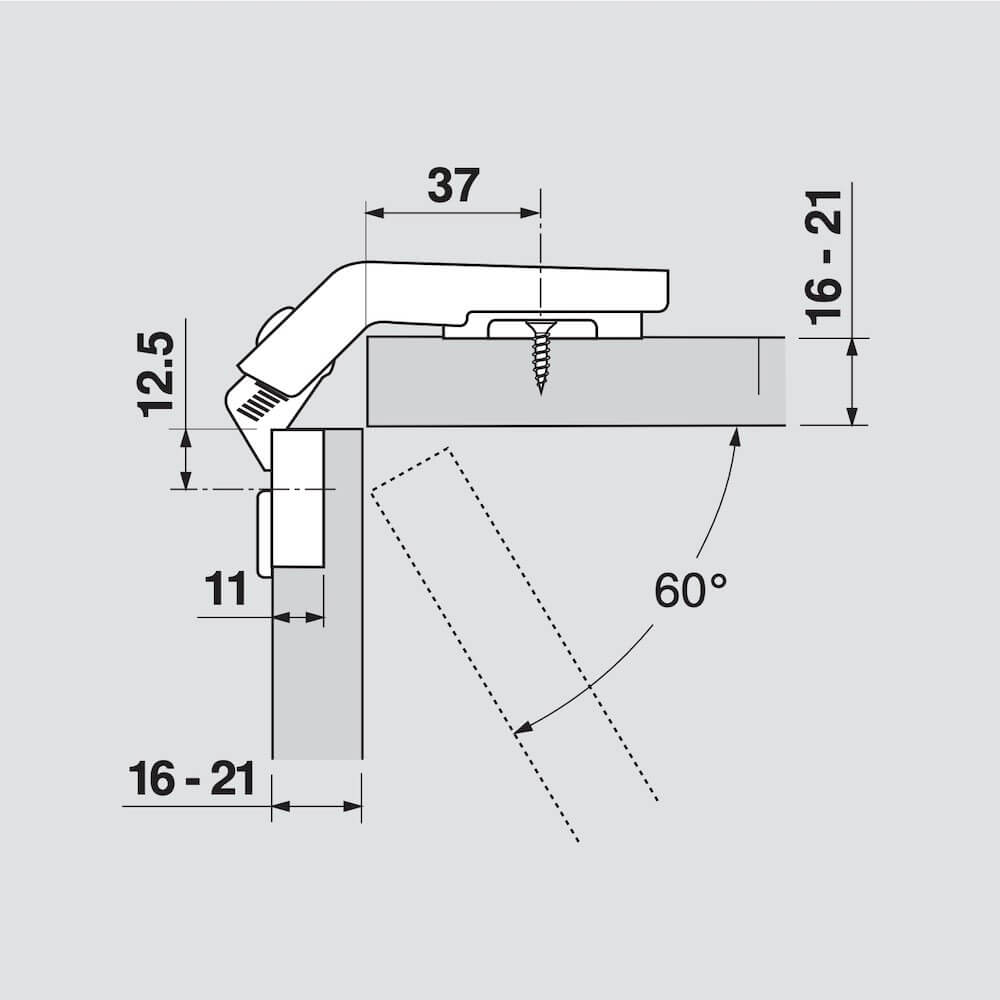

See Hinge Specification Sheet

SKU 79T85-KIT Categories , Tag

Product Description

60° Clip-Top Bifold Self Closing Hinge for Corner “Lazy Susan” Cabinets

  • Spiral tech side adjustment for door gap
  • Spiral tech depth adjustment for in/out
  • Four-dimensional adjustment
  • All metal hinge, nickel-plated

See Hinge Specification Sheet

The doors for a CLIP top bi-fold application can be of equal or unequal width. To calculate the door width (DW) of each door:

For Face Frame Cabinets
Step 1: Add the interior width (IW) to the overlay width (W).
Step 2: Subtract door thickness (T) and gap (G).

Formula: DW = (IW + Overlay) – T – G
Example: DW = (10.5 + .5) – .75 – .125 DW = 10.125″

For Frameless Cabinets
Step 1: Add the interior width (IW) to the side panel width (W).
Step 2: Subtract door thickness (T) and reveal (R).
Step 3: Subtract gap (G) and bumper thickness behind the adjacent door.

Formula: DW = (IW + W) – T – R – G
Example: DW = (500 + 19) – 19 – 3 – 1 DW = 496mm

Abbreviations
DW = Door width
G = Gap
H = Plate height
IW = Interior width
R = Reveal
T = Door thickness
W = Side panel width

Measuring Doors for Bifold Hinges

See Hinge Specification Sheet
