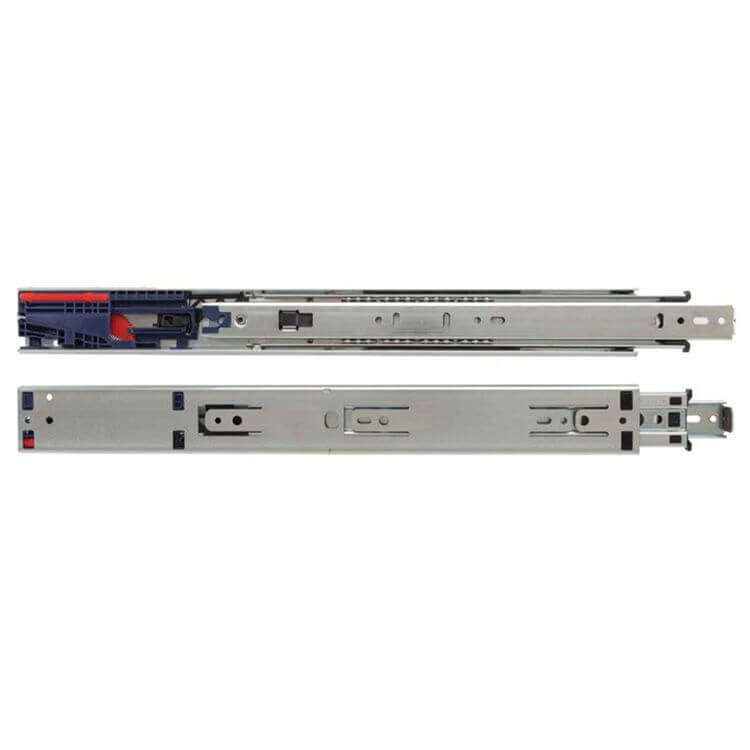

100 lb. class drawer slide with best-in-class soft-close module features patented Force Management™ Technology that delivers the lowest opening pull force while ensuring effective dampening closure that eliminates drawer slamming. Full extension drawer slide has a traditional and 32mm hole patterns that support industry standards. Features an unhanded design with lever disconnect for easy drawer removal. Recommended for drawers up to 24″ wide.
- 100 lb Load Rating

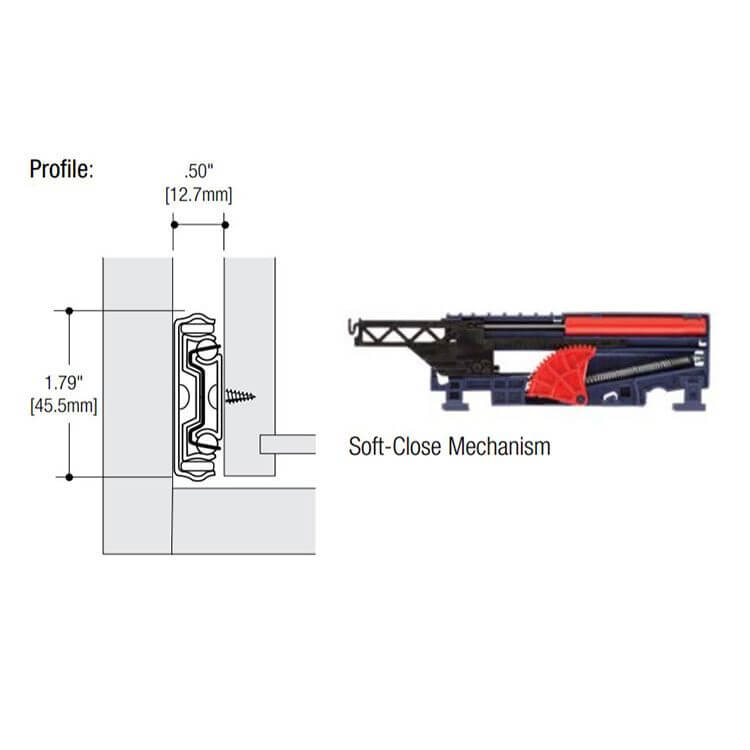

- Side Clearance: 1/2″ + 1/32″ – 0 per side
- Side Height: 1-13/16″
- Drawer member setback minimum 1/8″ from the back of the drawer front
- Steel ball bearing. (Three bearings per inch of race) Exceptionally smooth and quiet performance. A very high-quality slide!

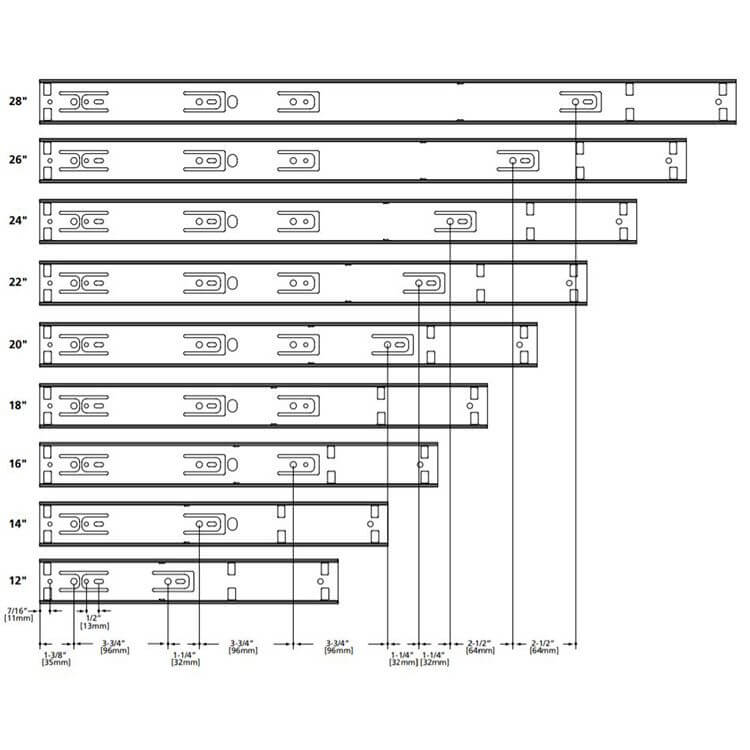

- Full 32mm hole pattern
- Lever disconnect for easy drawer removal with ball retainer latch and ramps for easy drawer insertion
- Non-handed
- Finish: Anochrome
- Lacquer top coat
- Spring-loaded self-closing with soft close
- 12″ slide extends 10-1/2″
I wish there were directions on how to install. It was a guessing game to mount tracks and drawer assy because I’d never done it before, and it replaced a 1970s track. It is an awesome slide set-up.
Hi Dave,
Thank you for your review!
There is a link to installation instructions provided on the product page for this drawer slide on our website.
Best Regards,
Melea
Customer Service Manager
3 of the slides were damaged but they replaced very quickly.
