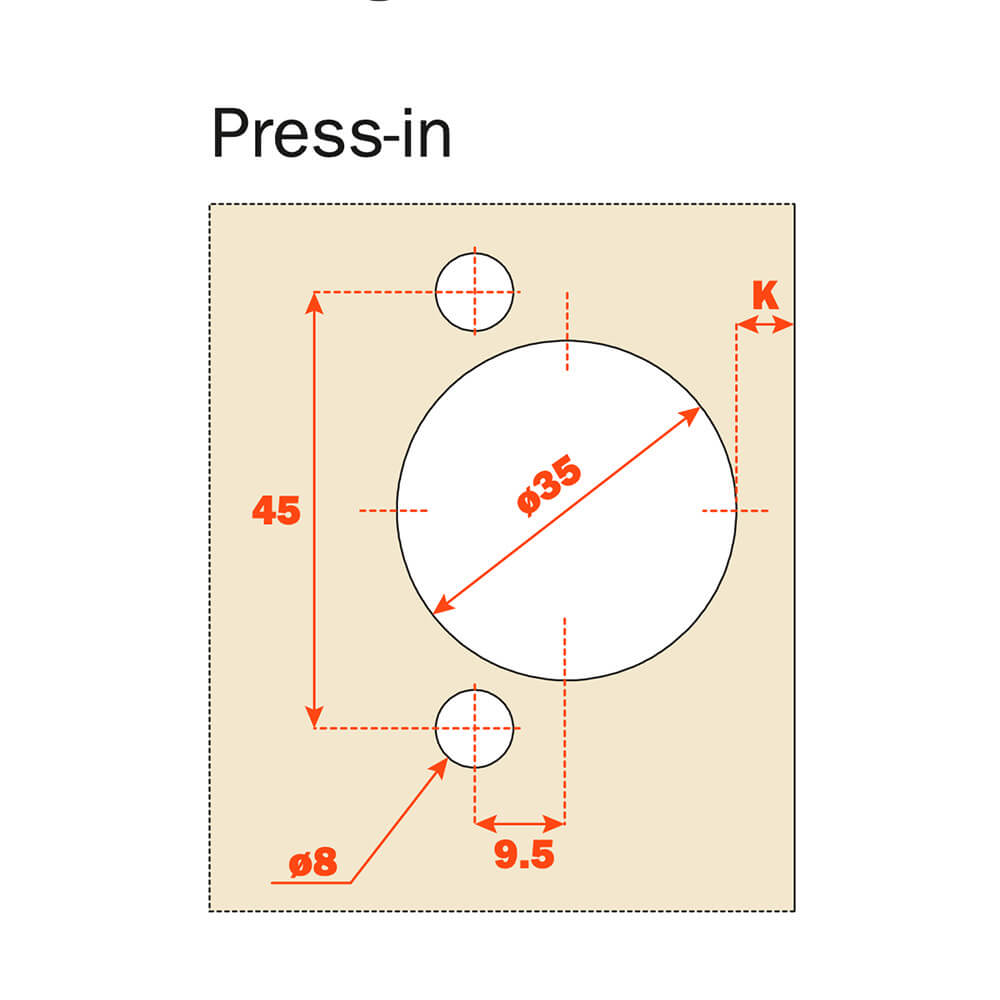

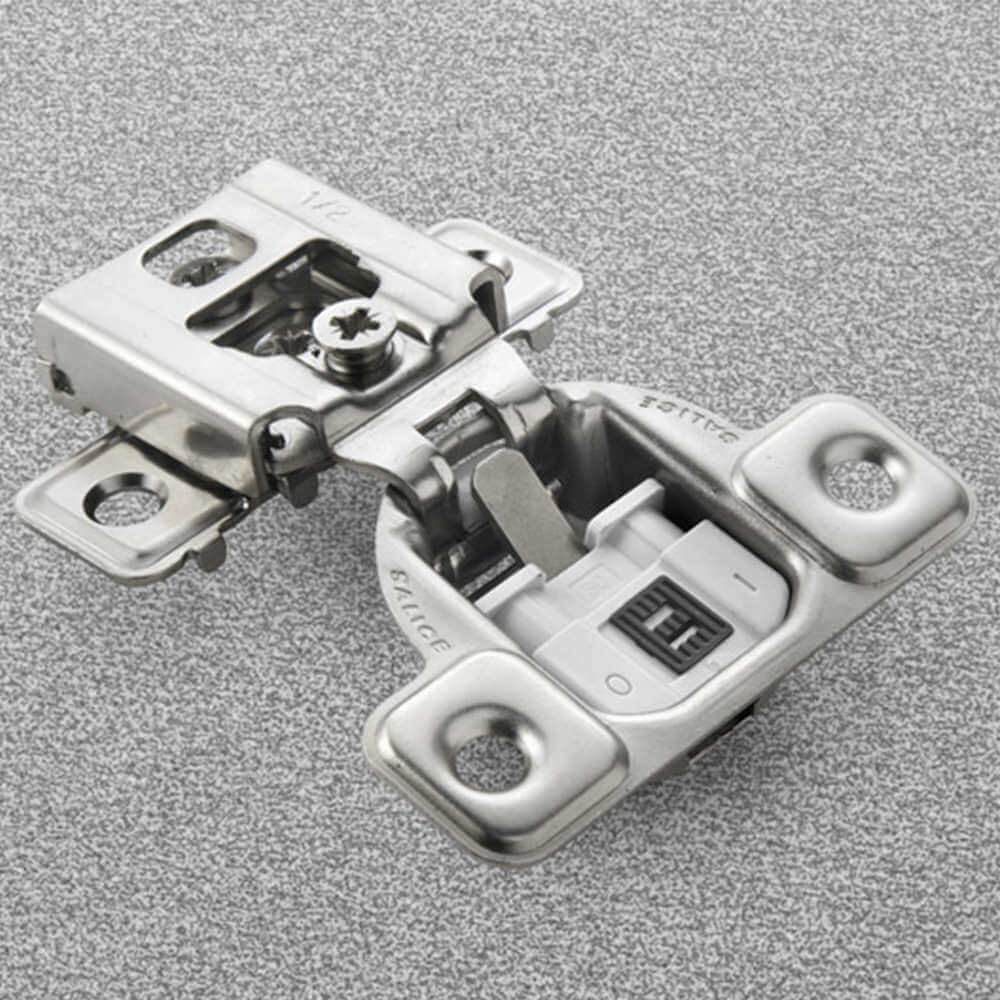

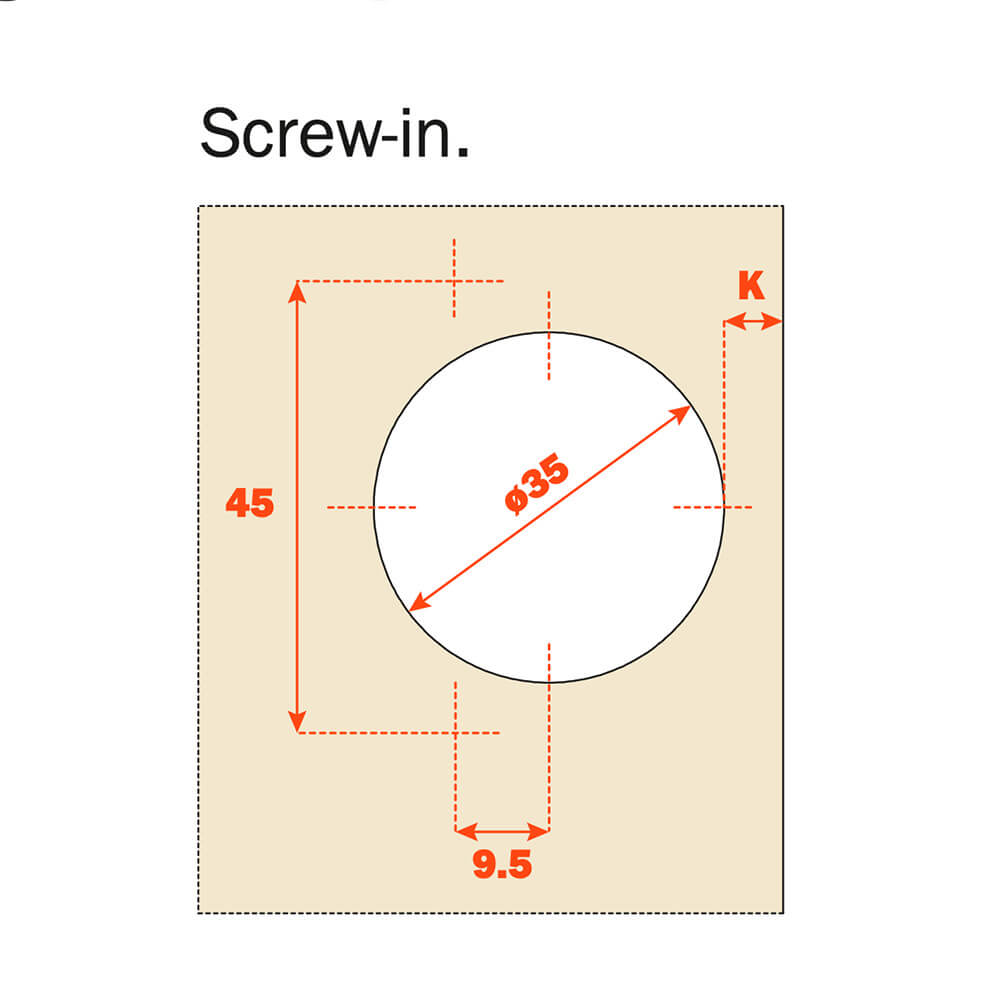

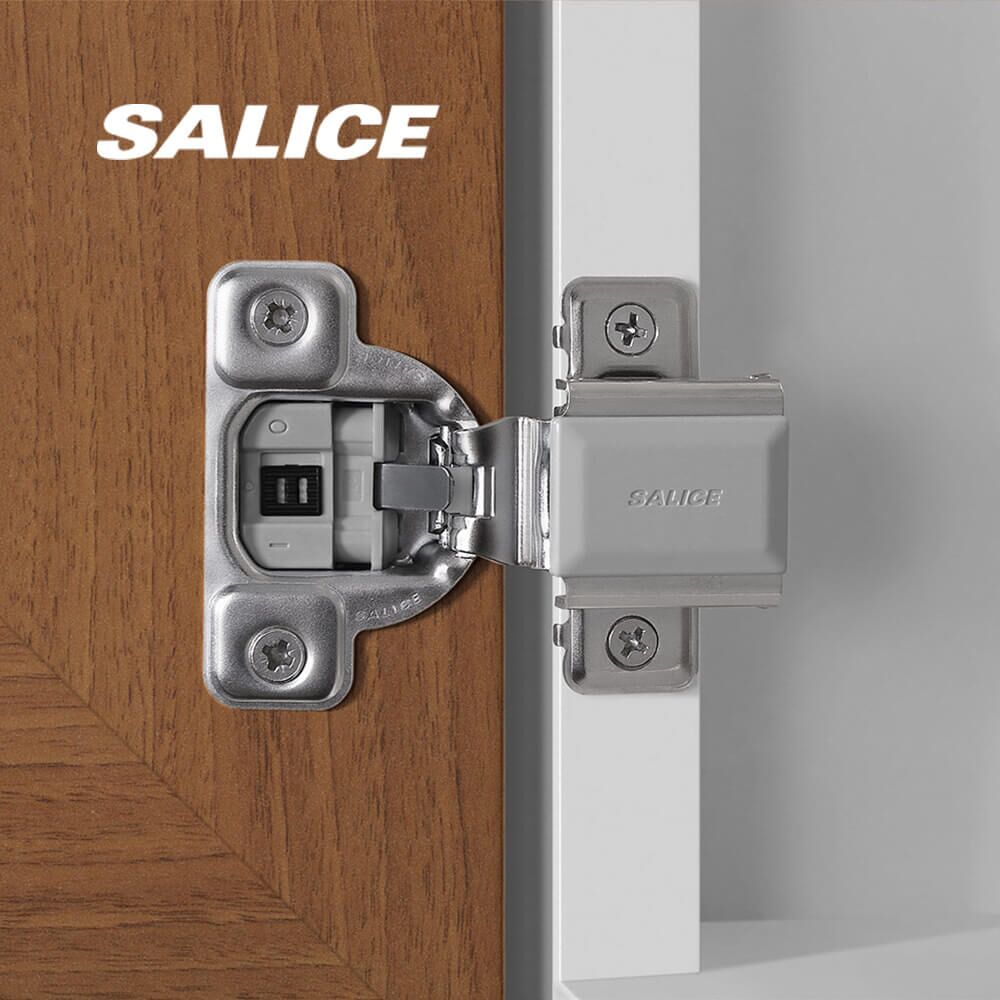

Salice Series S concealed face frame hinges, with integrated soft-close, feature a one-piece design and simple to use adjustable cams for side-to-side, in-and-out and up-and-down door movement. Each hinge has an activation switch which can be turned off of one hinge in a pair of hinges if the soft-close action is too slow for small doors. Available in screw-on or press in nylon dowel versions.

Stamped steel.
Minimum door thickness 14mm (9/16″).
Maximum door thickness 22mm (7/8″).
Cup depth 11mm (7/16˝).
Opening 106°.
Edgemount (front tabs only).
All Silentia face frame hinges have a variable drilling distance (K) of 2.5 mm – 6.0 mm.
#6 x 5/8˝ flat head wood screw
Side, height and depth adjustments.

See Hinge Specifications Here
