100 lb. class drawer slide with best-in-class soft-close module features patented Force Management™ Technology that delivers the lowest opening pull force while ensuring effective dampening closure that eliminates drawer slamming. Full extension drawer slide has a traditional and 32mm hole patterns that support industry standards. Features an unhanded design with lever disconnect for easy drawer removal. Recommended for drawers up to 24″ wide.

100 lb Load Rating

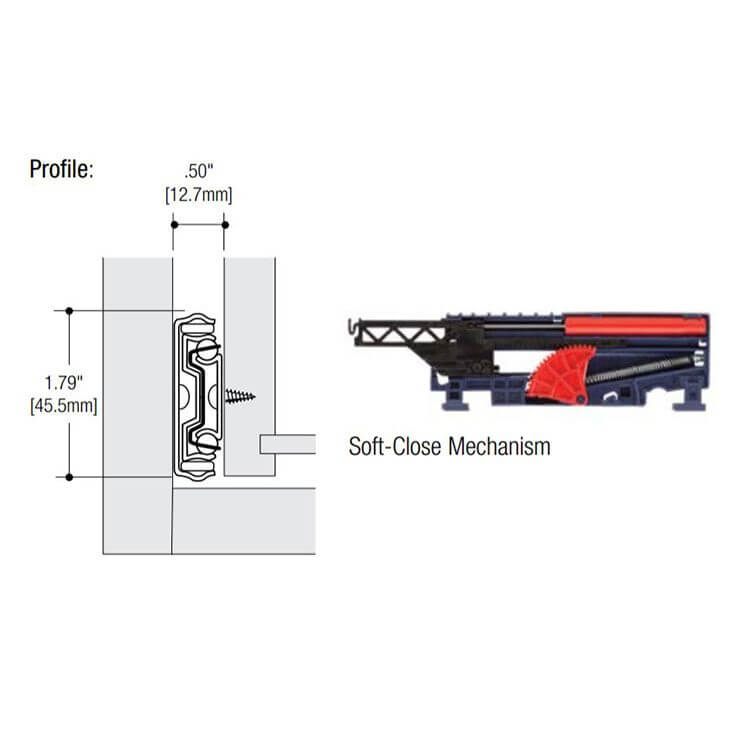

Side Clearance: 1/2″ + 1/32″ – 0 per side
Side Height: 1-13/16″
Drawer member setback minimum 1/8″ from the back of the drawer front
Steel ball bearing. (Three bearings per inch of race) Exceptionally smooth and quiet performance. A very high-quality slide!

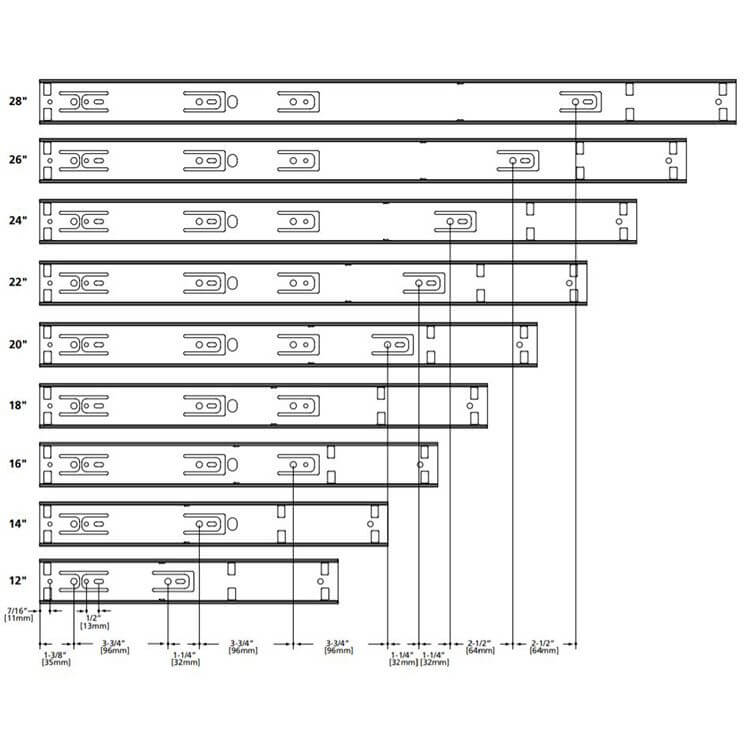

Full 32mm hole pattern
Lever disconnect for easy drawer removal with ball retainer latch and ramps for easy drawer insertion
Non-handed
Finish: Anochrome
Lacquer top coat
Spring-loaded self-closing with soft close
12″ slide extends 10-1/2″
