KV 8400 Side Mount Drawer Slide

$15.94

Rated 4.87 out of 5 based on 252 customer ratings
(252 customer reviews)

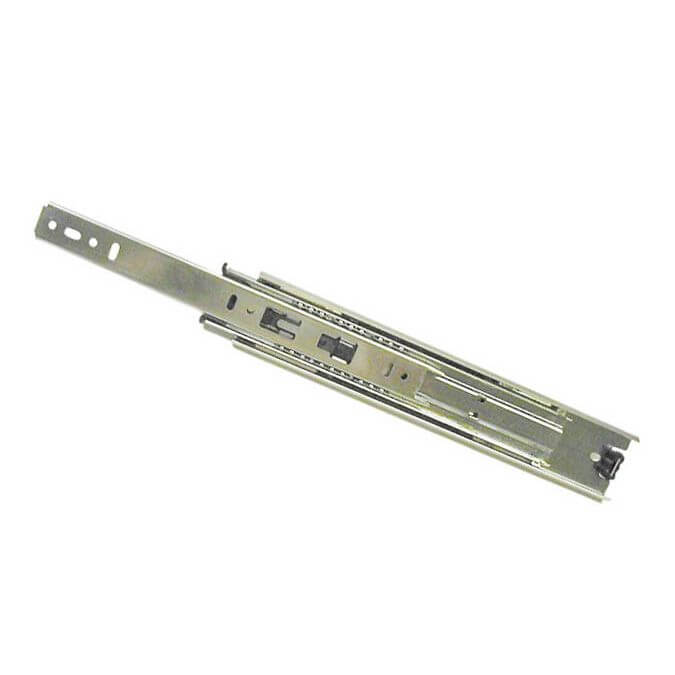

KV8400 Drawer Slide

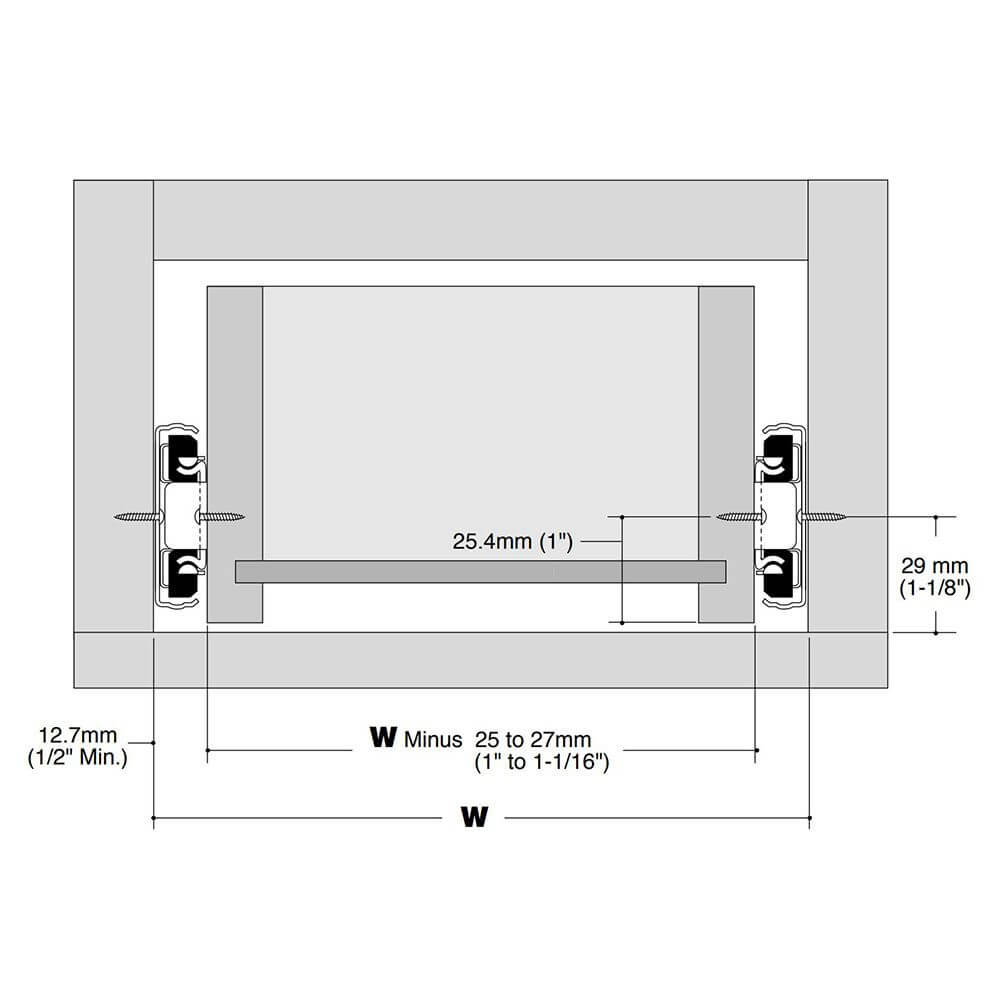

KV8400 Drawer Layout

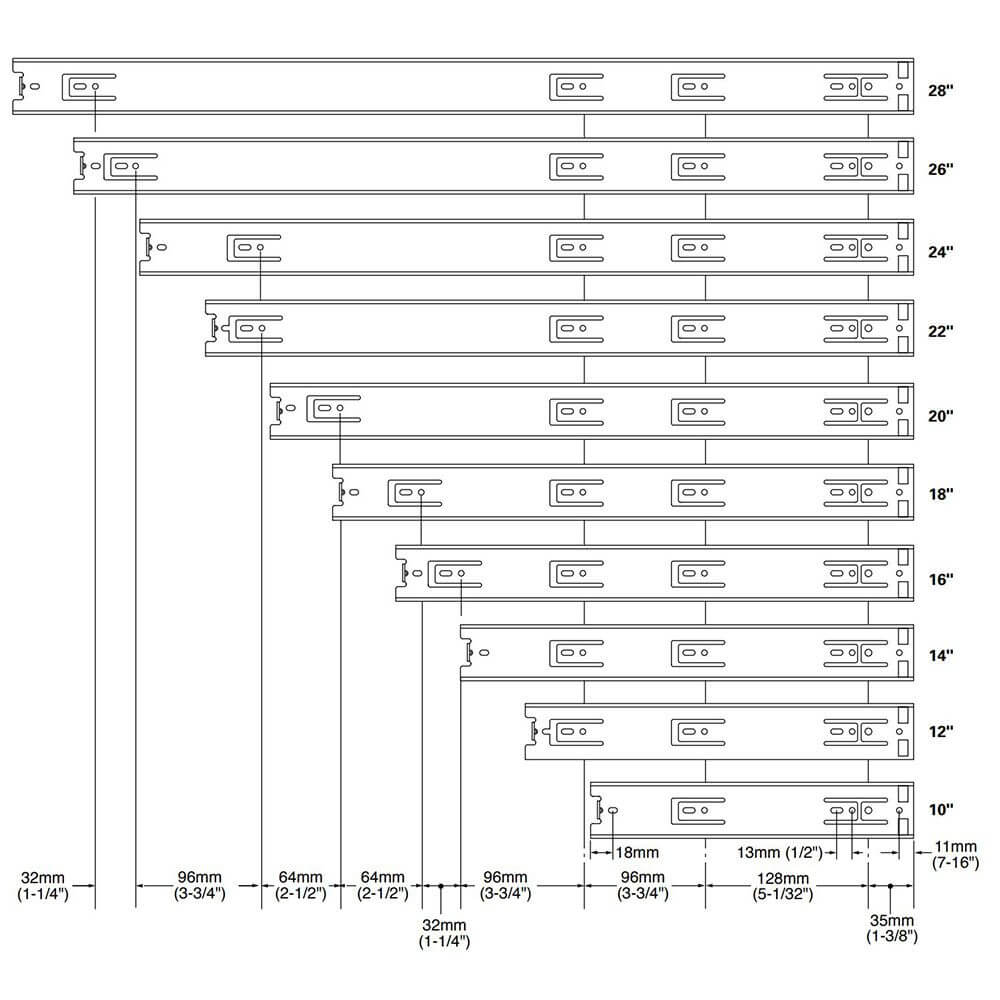

KV8400 Drawer Slide Dimensions

$15.94

–

8″ to 28″ Full Extension Precision Drawer Slide. Sold in Pairs
  • 100# Load Rating
  • Side mounted
  • Steel ball bearing. Exceptionally smooth and quiet. A very high quality slide
  • Non-handed
  • Easy disconnect
  • See Installation and Specifications
SKU KV8400 Categories , Tags ,

Product Description

8″ to 28″ Full Extension Precision Drawer Slide
  • 100# Load Rating
  • Side mounted
  • Slide height – 1-13/16″
  • Side clearance – 1/2″ + 1/32″ – 0
  • Steel ball bearing. Exceptionally smooth and quiet. A very high-quality slide
  • Full 32mm hole pattern
  • Non-handed
  • Easy disconnect
