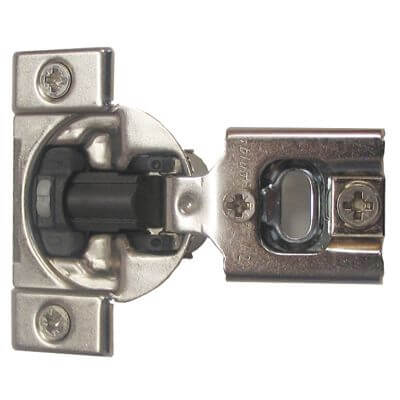

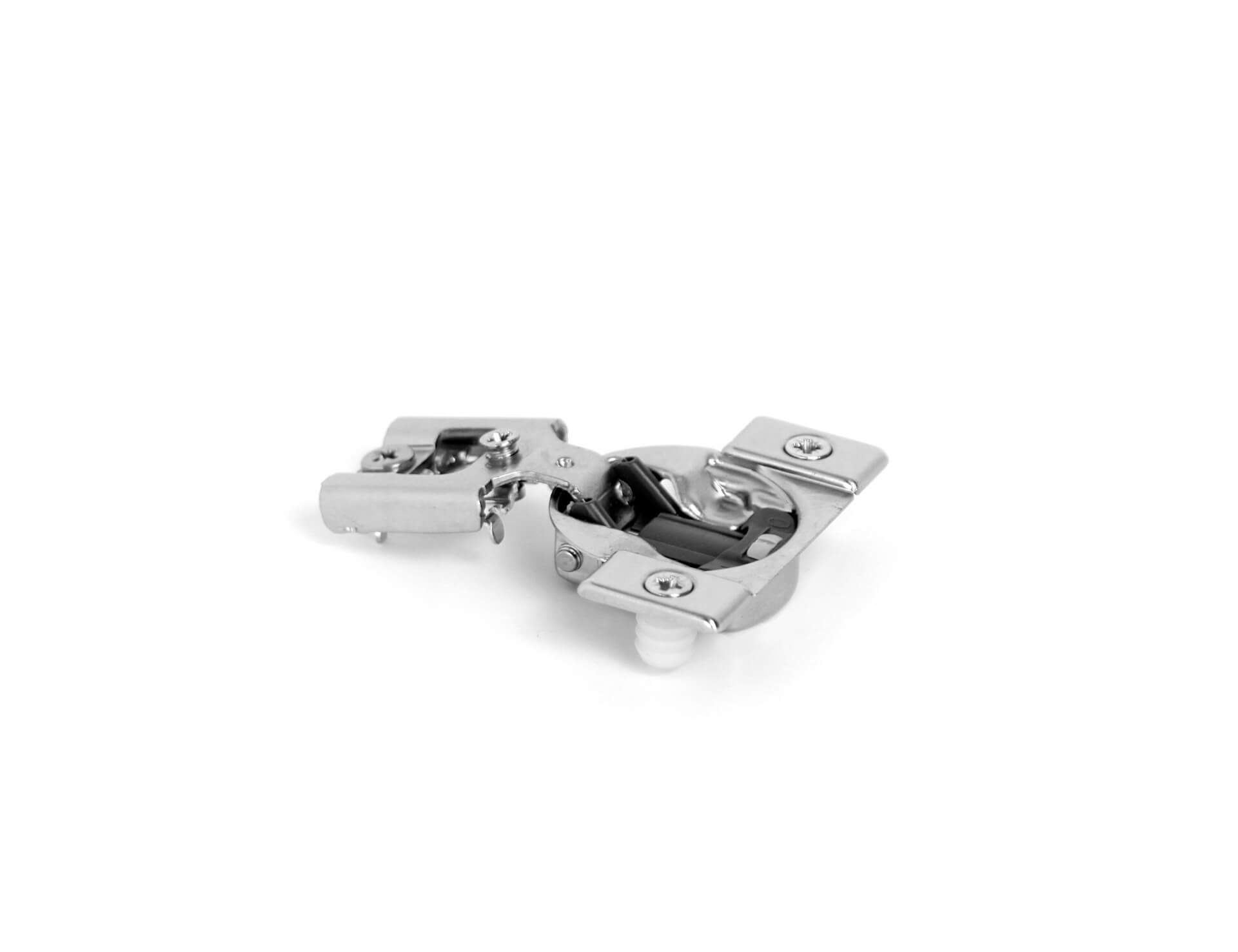

Blum Compact Hinge w/ Soft Close
$4.72
$4.72

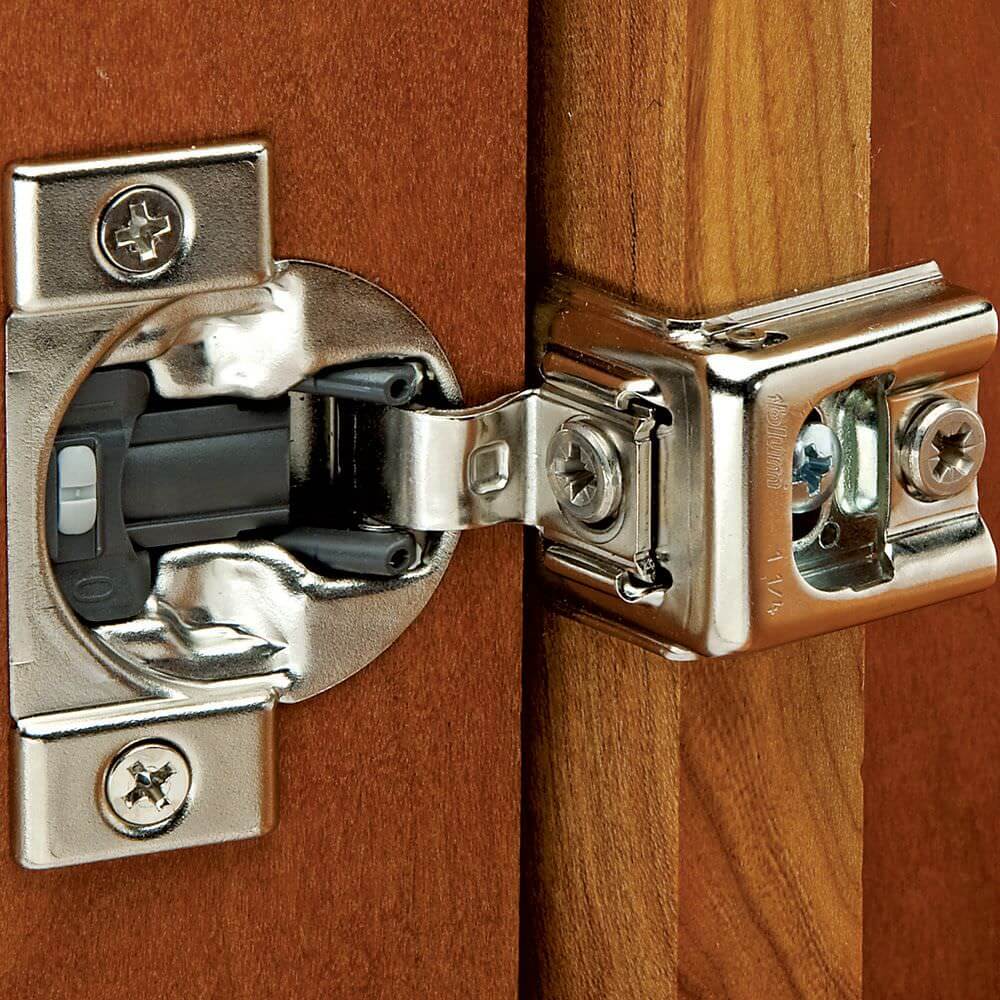

This is a one-piece face frame hinge with integrated Blumotion Soft Close Mechanism. It has one screw for height adjustment and one screw for side to side adjustment. For 3/4″ thick face frames only.
Limited Lifetime Warranty.
Installation Screws Included.
Sold as Each NOT Pairs.
- 1/2″ cup depth

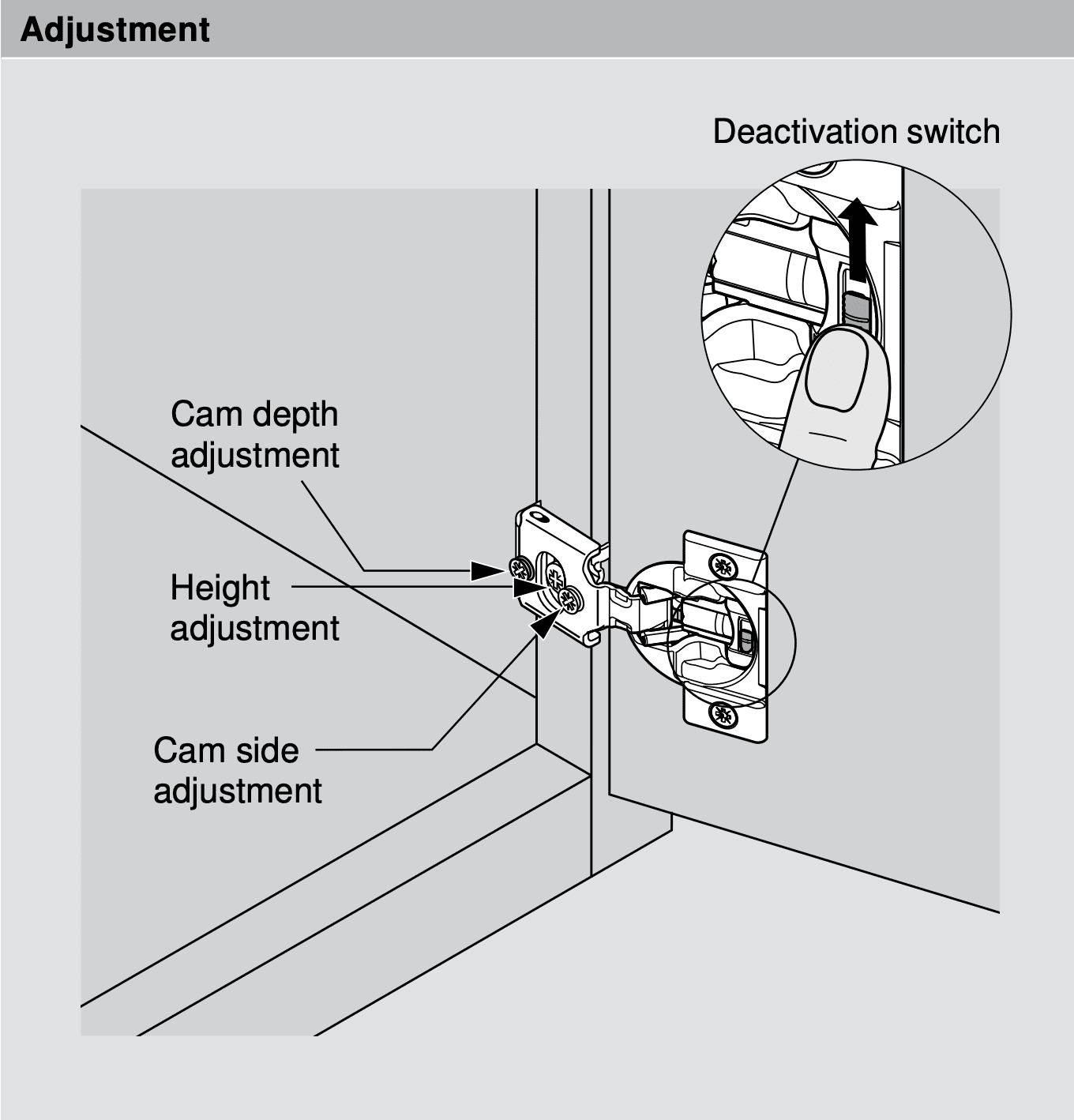

- +/- 1/16″ side adjustment
- +/- 1/8″ height adjustment

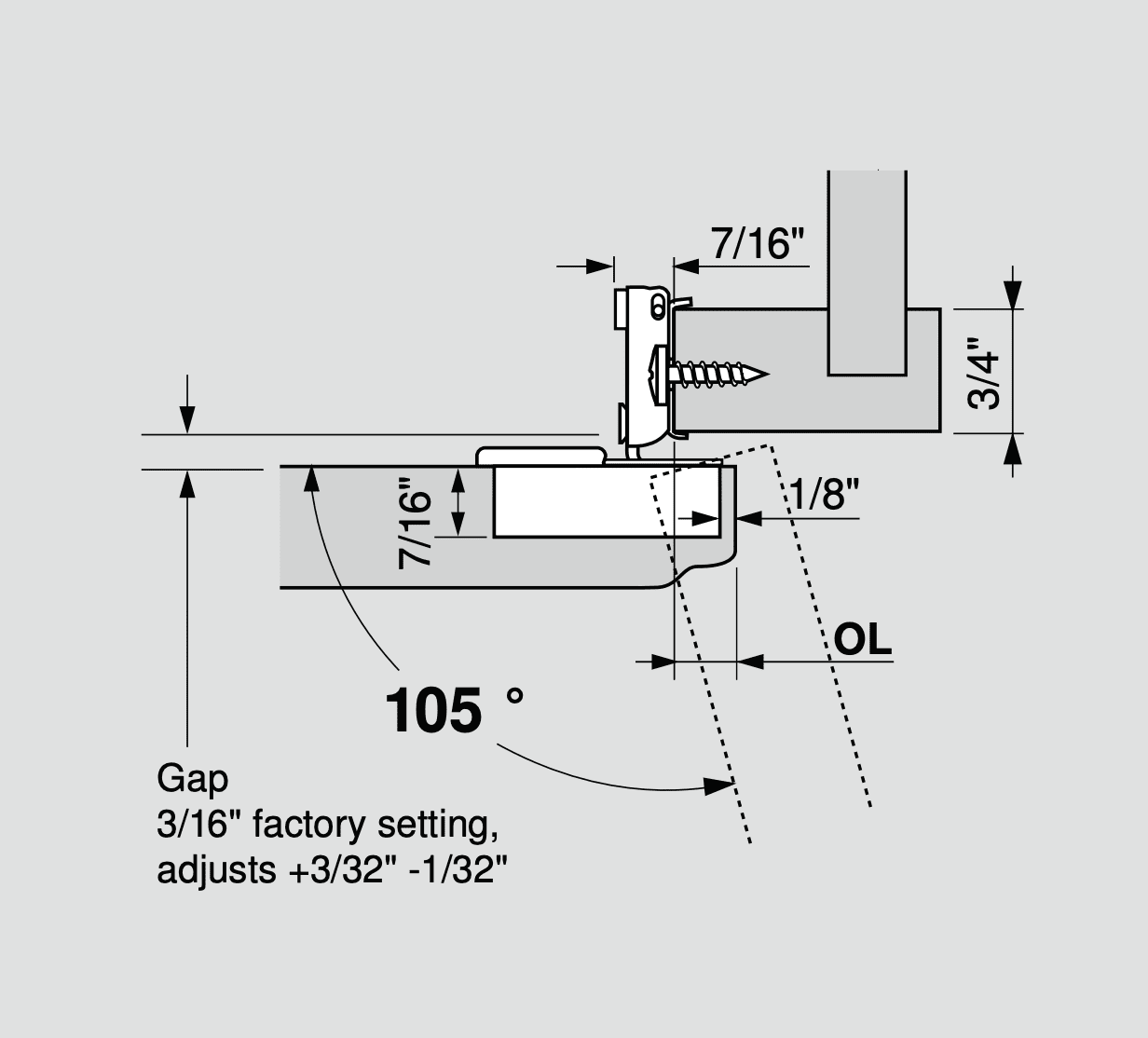

- +3/32″ – 1/32″ depth adjustment
- Stamped steel, Nickel Color
- 105°(38N) or 110°(39C) opening angle

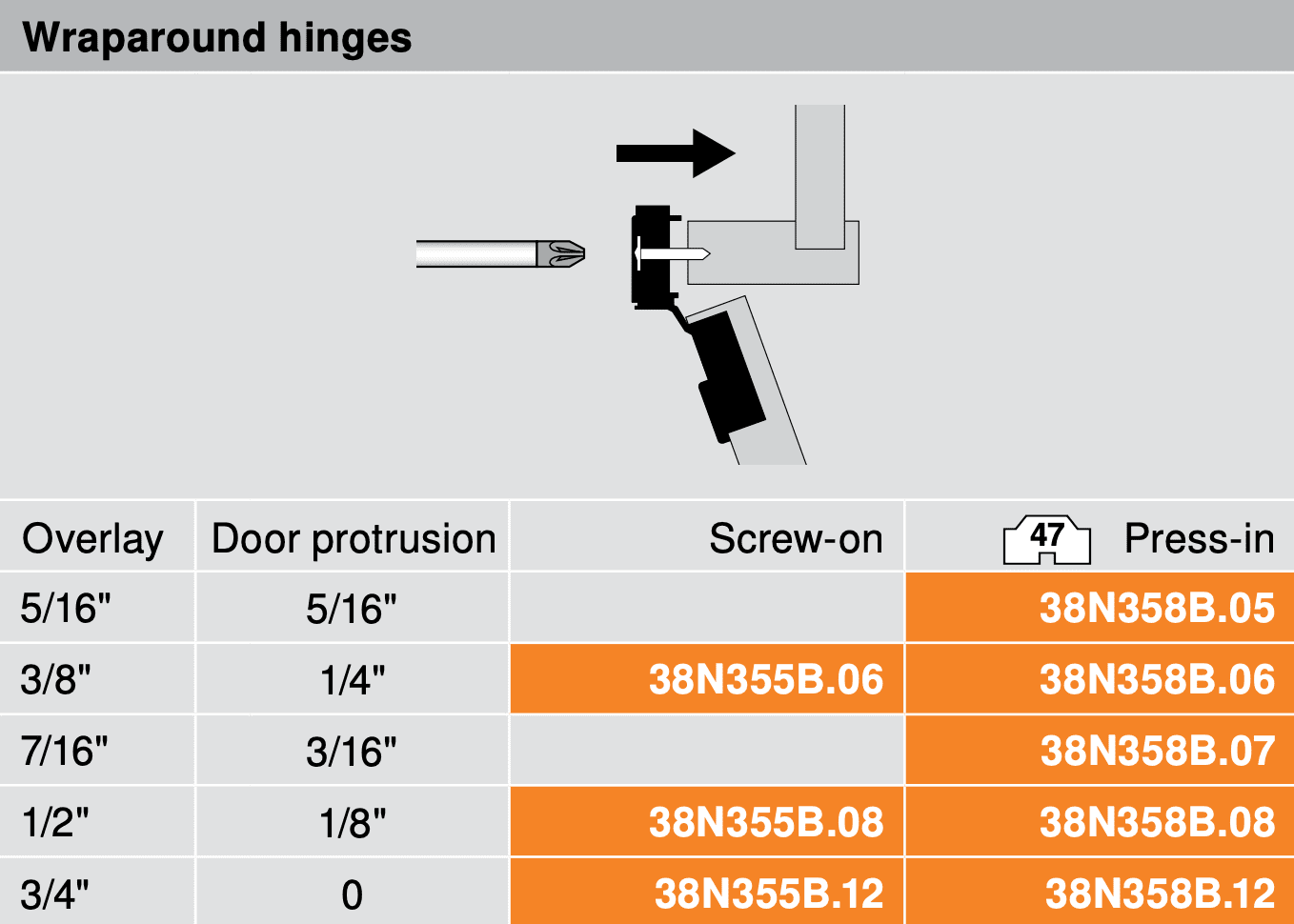

- Wrap around mount
- One piece assembly
- For 3/4″ face frames only
- Soft Close
Q & A
Hi Mark,
With the Blum compact hinges, you will select 1-1/2" for the overlay. This will work with a 3mm bore distance on the door.
Hi Sharon,
You can reach us at [email protected].
Hi Kevin,
That is correct if you are ordering your replacement doors to be the same size as your existing. The overlay refers to the amount of frame that is covered by your door on the hinged side.
Hi Dustin,
With this compact hinge on a face-frame application, you will select the standard 3mm bore distance.
Hi Alan,
The largest overlay the Blum Compact hinge accommodates is 1-9/16". We do not have any compact hinges for a 1-3/4" overlay on a face-frame.
