Product Description

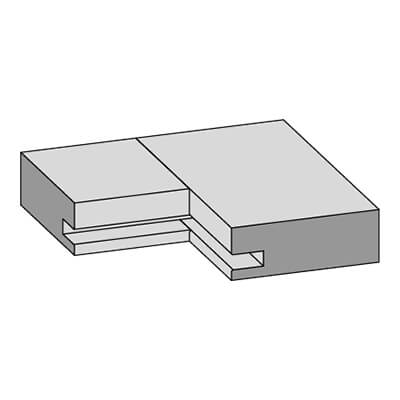

The inset cabinet door features a 3/8″ thick center panel and hardwood Mortise and Tenon joinery.
$0.00
$0.00
Enter exact product dimensions in decimal form.
The inset cabinet door features a 3/8″ thick center panel and hardwood Mortise and Tenon joinery.
The Cabinet Door Store manufactures its wood tenon style cabinet doors without the use of any metal pins. All solid panels are installed with rubber spacers to allow for expansion or contraction in different environmental situations. All plywood panels are glued in on all four sides as plywood is structurally stable and this prevents any possible vibration problems in the future with the plywood panel.
All tenon doors are 0.8” (20mm) thick.
Cabinet doors have a vertical grain by default. Drawer Fronts have a horizontal grain by default (as of 1/18/2022; NOTE: product photos show vertical grain; this is available by request). Grain direction is not applicable for doors and drawer fronts with Paint Grade Maple w/ HDF Center Panels.
Defaults:
All center stiles and rails will be centered to create even-sized panels. Tenon Doors and Fronts over 24″ W or 48″ H without recommended midrail/stile are possible to order but ARE NOT covered by our 1 year warranty.
***Use Custom Notes to Request Changes to Defaults***
The Cabinet Door Store warrants that it’s wood cabinet doors have a size tolerance of +/- 1mm.
Warping is always a factor with wood cabinet doors. The Cabinet Door Store warrants that any door or drawer front under 24”x48” will have an allowance of 1/8” for warpage. Doors or drawer fronts between the sizes of 24”x48” and 24”x72” will have an allowance of ¼” for warpage. Any doors or drawer fronts wider than 24” or higher than 72” will not be warranted for warpage.
Note: This applies to doors and drawer fronts with one vertical grain panel.
When ordering tenon cabinet doors for an inset application, we recommend ordering your doors slightly oversized with the “I” outside edge profile. This way you can size the front specifically for your opening. Because of the properties inherent in wood and the achievable tolerances, we do not guarantee fronts to fit an inset application properly.
Every Door is:
For Solid Panel Tenon Doors & Drawer Fronts – (Stile / Rail Width x 2) + (Panel Profile Reveal x 2) + 1/2”.
For Plywood Panel Tenon Doors & Drawer Fronts – (Stile / Rail Width x 2) + 1”
Hinge Boring Pattern Options
For Screw-On Hinges (L1P)
Hinge cup with 2 pilot holes for screws. Recommended for most DIY and one-off situations.
For Press-In Hinges (L3)
Required for Inserta Hinges. Standard press-in hinges require a knock-in tool or Minipress.
Bore Distance (A)
Most Concealed Door Hinges for Face Frame cabinets require a 3mm (1/8″) Bore Distance (from edge of door to start of 35mm bore).
6mm (.25″) is an option for Framed or Frameless Cabinets or other situations.
Handing is Determined By Looking at Front
TIP: Order Same-Size Symmetrical Doors Together and Flip for Left or Right
Bore Offset (B and C)
Our standard Bore Offset (from bottom or top edge of door to center of 35mm bore) is 3-1/2″.
See below for exceptions.
