Multiple Panels
The Cabinet Door Store manufactures miter doors with multiple panels utilizing center stiles and rails. Any multiple panel miter door is not a standard production item, therefore requires additional lead time and a quoted price.
Tolerance
The Cabinet Door Store warrants that it’s wood cabinet doors have a size tolerance of +/- 1mm. Warping is always a factor with wood cabinet doors. The Cabinet Door Store warrants that any door or drawer front under 24”x48” will have a warpage allowance of 1/8”. Doors or drawer fronts between the sizes of 24”x48” and 24”x72” will have a warpage allowance of ¼”. Any doors or drawer fronts wider than 24” or higher than 72” will not be warranted for warpage. Note: This applies to doors and drawer fronts with one vertical grain panel.
IMPORTANT: When mitered fronts are in a climate that is too humid, the outside of those joints will open like that (see below image). If the humidity is lowered, we may see those joints move back to the more typical position. (on the flip side, if it is too dry, the inside may open on the miter).
If fronts will be painted, ORDER PAINT GRADE MAPLE W/ HDF CENTER PANEL. We construct these with a screw and plug to help minimize this gapping that can happen.
Quality Standards for Every Miter Door and Drawer Front
Every door is:
- orbital and/or hand sanded in every panel profile.
- thickness sanded on the back side with 100, 150 and 180 grit sandpaper.
- orbital and/or hand sanded on the face side.
- individually inspected for quality and ensure proper corners and smoothness.
Minimum Size Calculations for Miter Doors and Drawer Fronts
For Solid Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + (Panel Profile Reveal x 2) + 1/2”
For Plywood Panel Miter Doors & Drawer Fronts
- (Stile / Rail Width x 2) + 1”

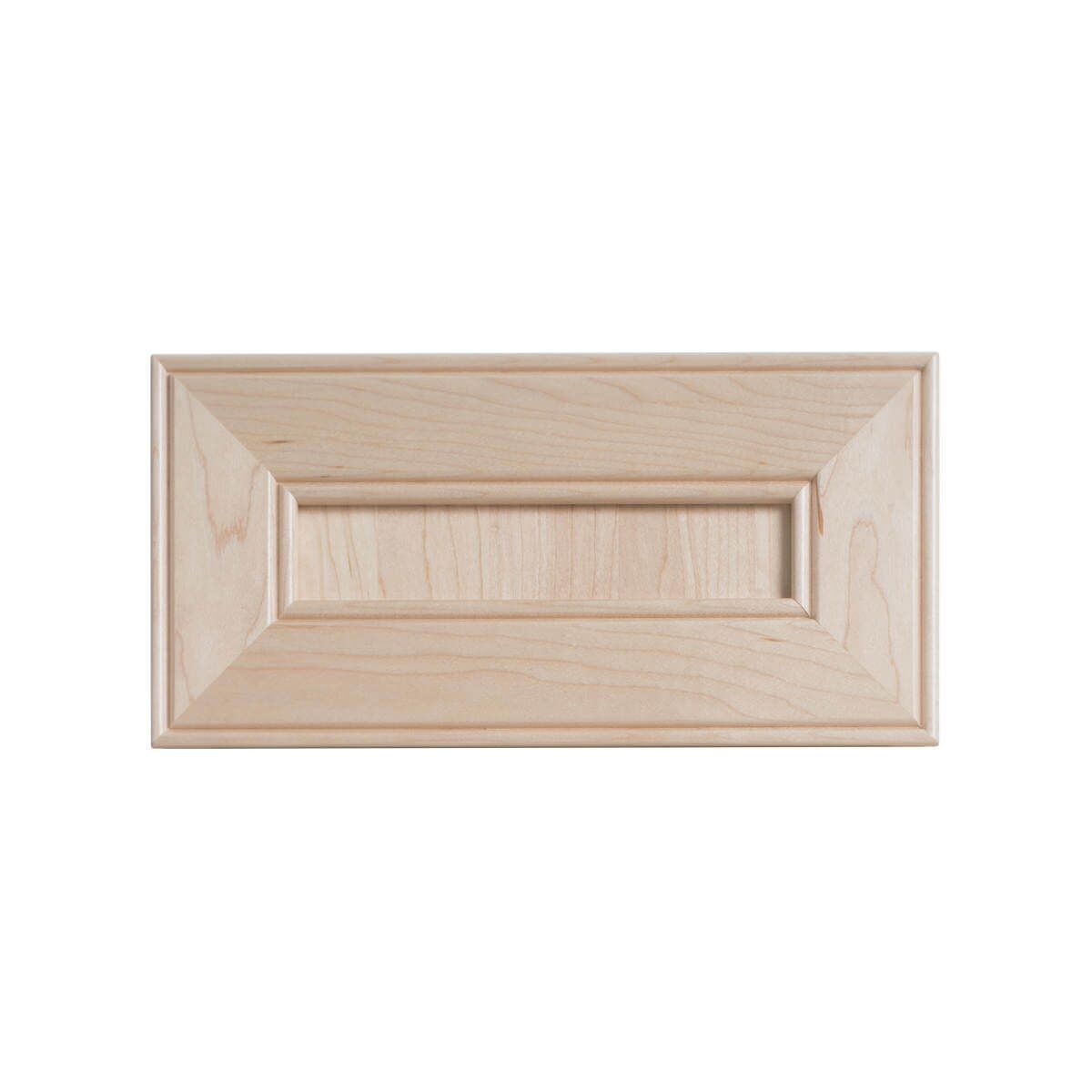

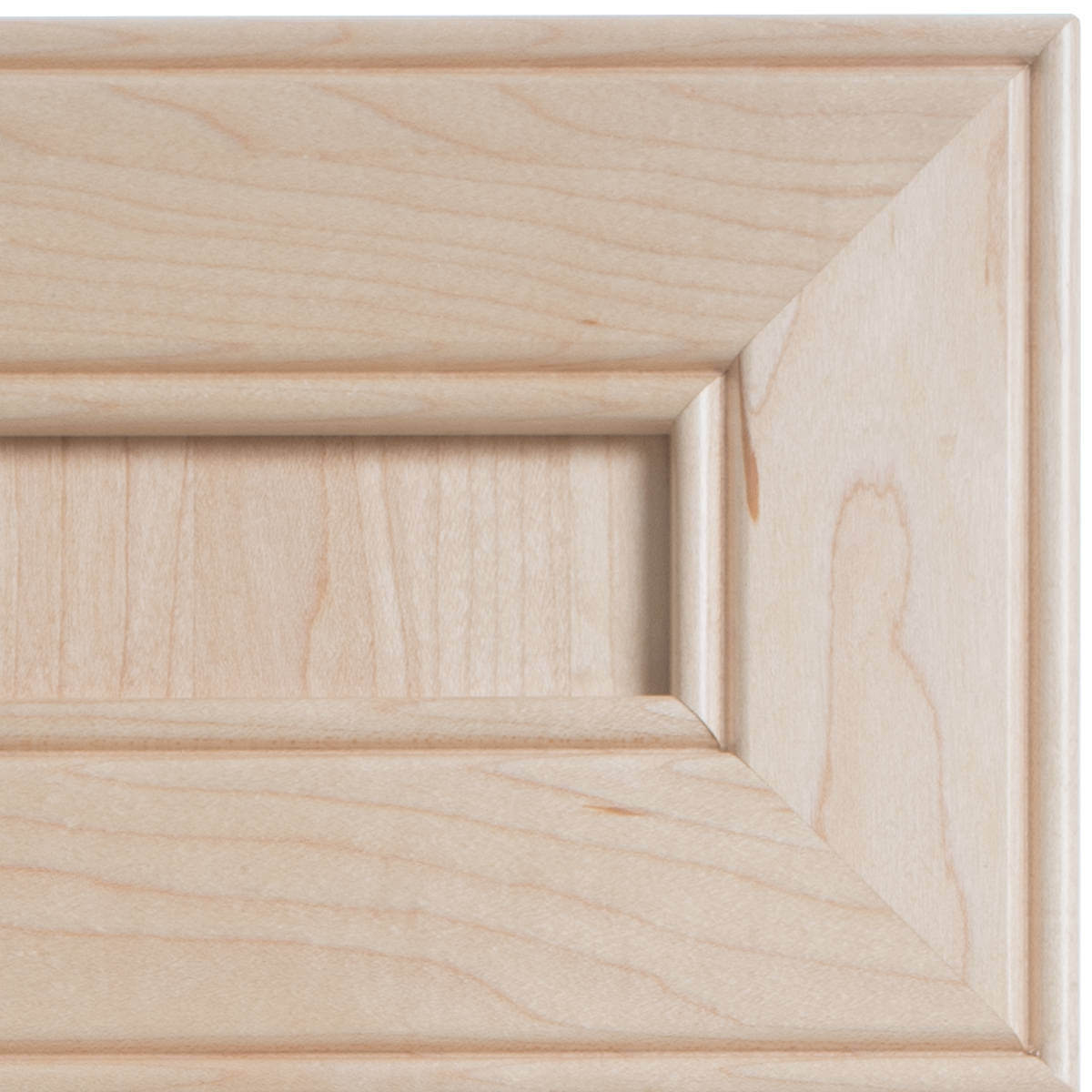

Nicely made drawer fronts. Tightly mitered corners and sanded smoothly.
